CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLTF-0205 |
|
Detail Information |
|||
| Rated Capacity:: | 50Ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Dimensions: | 400*400*150mm | Cell Type: | LiFePo4 |
| Energy: | 2400Wh | ||
| High Light: | LFP E Scooter Battery Pack,48V 50Ah E Scooter Battery Pack |
||
Product Description

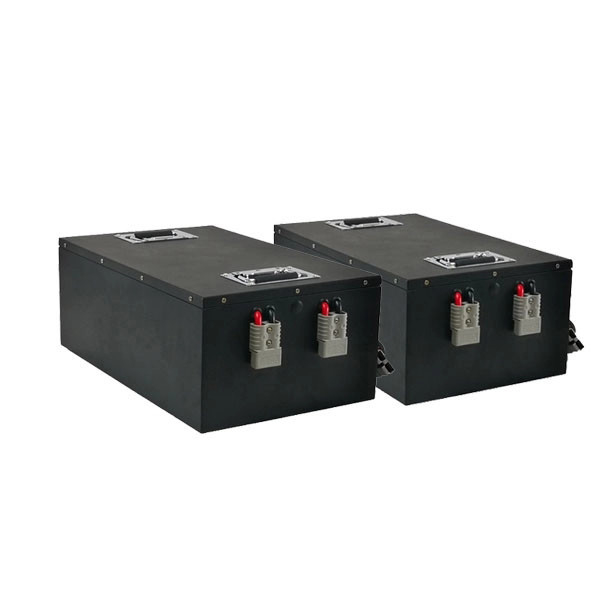

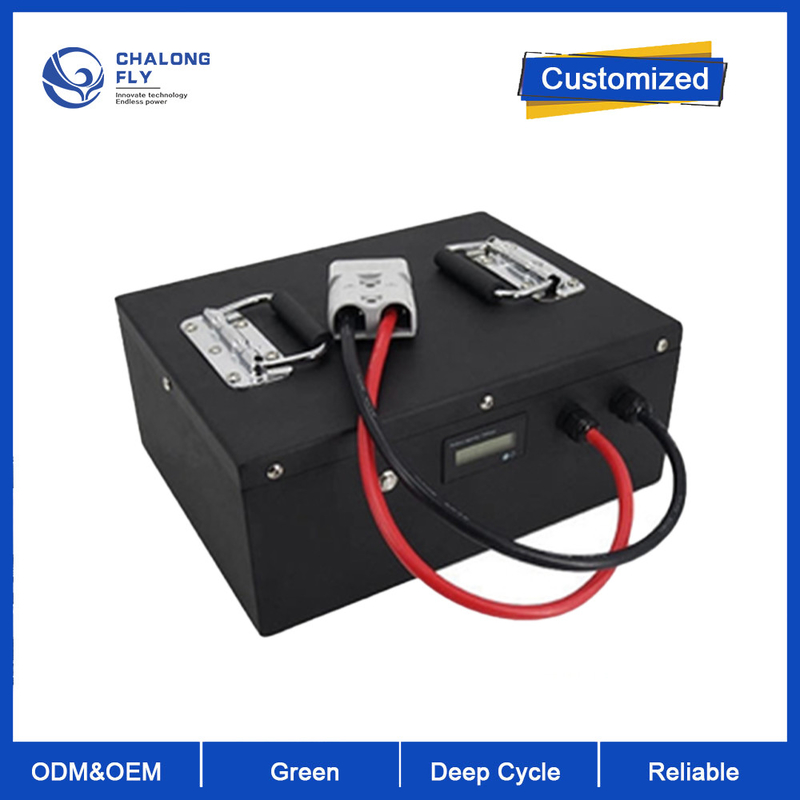

Long Cycle Life Lifepo4 Battery Pack 48V 50Ah Battery For Electric Motorcycle Battery
Specifications:
| MODEL | CLTF-0205 |
| Cell Type - Chemistry | LiFePO4 |
| Rated Capacity | 50Ah |
| Rated Voltage | 48V |
| Energy | 2400Wh |
| Cell Resistance | ≤5m Ω |
| Maximum Modules in Parallel | 8 |
| Dimensions (L x W x H) | 400*400*150mm, can be customized |
| Weight | 20kg |
| Discharge Cut-off Voltage | 37.5V |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 100A <3S |
| Recommended Discharge Current | 50A |
| Charging Limited Voltage | 54.75V |
| Max Charging Current | 50A |
| Recommended Charge Current | 25A |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
|
Storage Temperature & Humidity Range (Less than 1 month) |
-20~35℃, 45~75%RH |
|
Storage Temperature & Humidity Range (Less than 3 months) |
-10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃, 45~75%RH |
| Life cycles | >3000 |
Features:
1. Most safe LFP battery technology, no cobalt Long lifetimes.
2. Long cycle life,>3000 cycles @80% DOD.
3. Self-engineered BMS with cell level monitor.
4. Short circuit/ Over current/Over voltage/Over temperature protection.
5. Strong steel case with black color.
6. Will provide drawing before production.
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Contact us for more information!
