OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs

Contact Now

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs

Minimum Order Quantity :	2 unit	Price :	Negotiable
Packaging Details :	Wooden case and Carton case	Delivery Time :	7-15 working days
Payment Terms :	T/T	Supply Ability :	1000 units per month

Place of Origin:	Hunan,China	Brand Name:	Chalong Fly
Certification:	CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc	Model Number:	CLFLE136

Detail Information
Capacity:	460Wh / 16.8V 32Ah	Dimensions:	258150197mm
Certificate:	CE,UN38.3,FCC,RoHS	OEM/ODM:	Acceptable，warmly Welcomed
Battery Type:	Ternary Lithium Battery	Weight:	Approx: 4.2kg
Cycles:	≥1000 Times	Discharging Temperature:	-4-140°F (-20-60°C)
Highlight:	ODM Portable Lithium Battery , 500W Portable Lithium Battery , 16.8V 32Ah Lithium Battery

Product Description

If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.

Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 0

Parameters

No.		CLFLE136
Net Weight		4.2Kg
Dimensions		258x150x197mm
Capacity		460Wh /16.8V 32Ah
Certification		CE UN38.3 FCC RoHS
AC output		500W(Peak 600W),220Vac 50Hz
5V USB Output		5V DC,2.4A,12Wmax,per port
QC 3.0 fast charging		5V 3A DC, 9V 2A DC, 12V 1.5A DC,18W
Type-C Output		3A DC , 9V 2A DC, 12V 1.5A DC, 18W max
DC 12V output(x2)		84W, 12V DC, 10A max (no short circuit protection)
Car Power output(x1)		94.5W, 13.2V DC, 7A max
AC charging input voltage		220-240Vac 50Hz
AC Charging Input Power		TH02 Charging Power 84W max. 16.8V DC 5A max
Cell type		Ternary lithium battery
Cell Capacity		14.8V 32AH
Discharge temperature		-4-140°F(-20-60℃)
Charging temperature		32-122°F(0-50℃)
Cycle life		≥1000 times

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 2

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 5

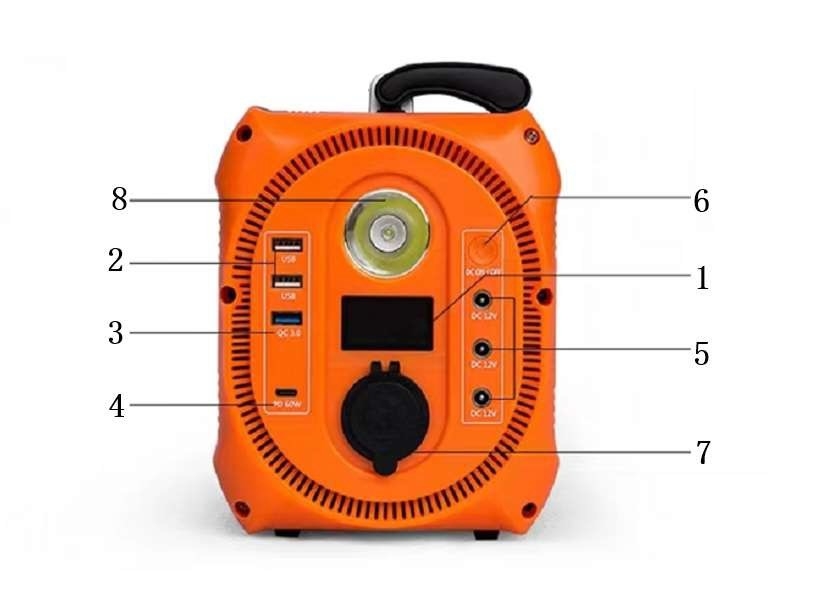

1. LCD Display
It can display the product's charge level, whether the AC and DC outputs are on. You can turn it on or off by pressing and holding the AC or DC ON/OFF button.

2. 5V USB output port

Charges a variety of devices, such as Apple phones, tablets, speakers, or any device that needs to be charged through the USB-A port. Devices can be charged at a maximum of 5V 2.4A. 3.

3. Quick Charge QC 3.0 Output Port

Charges a variety of devices such as Apple phones, tablets, speakers, or any device that needs to be charged through a USB port. Devices that support fast charging can be charged at a maximum speed of 28W. If your device does not support fast charging, it will charge at normal speed.

4. Quick Charge Type-C Output Port
Devices that charge through the Type-C port, such as Apple computers, Android phones, or other devices, can be charged through the TH01 Type-C port charging. Devices that support fast charging can be charged at a maximum speed of PD18W. If your device does not support fast charging, the device will charges at normal speed.

5.DC-12V Output Port
Devices charged through the DC-12V port charge DC-12V devices. For example, DC12V LED lamp, DC12V refrigerator, device can be charged at max.The device can be charged at a maximum of DC12V 7A.

6. DC Power Switch
Press and hold the DC button to turn on the DC output. The LCD display will light up and show the power percentage, DC ON.

7. Car Cigarette Lighter Outlet
Charging devices that require charging for the car port, such as drone batteries. The DC port outputs DC12V voltage.

8. Illumination
With the DC output on, double-click the DC button again to turn on the illumination, then click the DC button again to switch the mode of the illumination, and double-click the DC button again to turn off the illumination,Close the lighting.

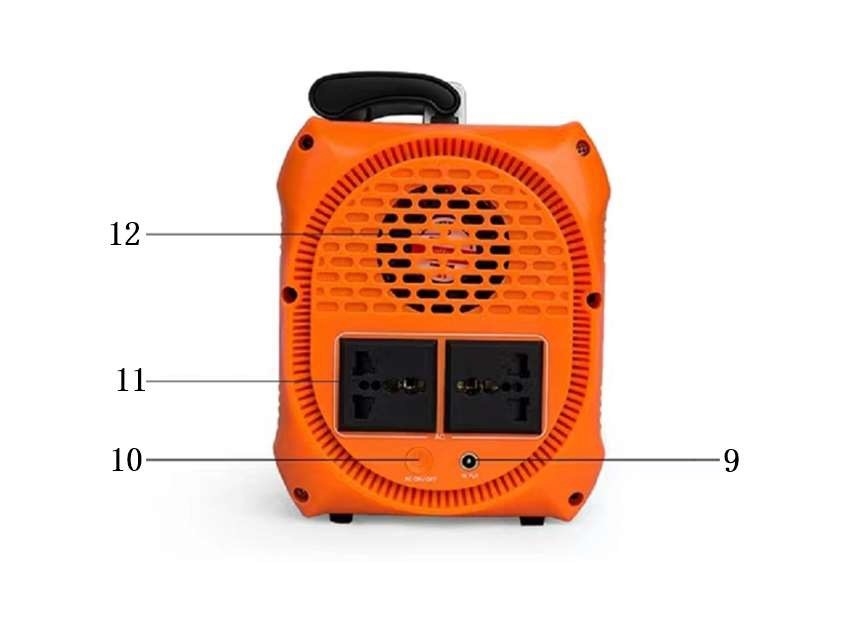

9. Charging Interface
TH01 needs to use professional charger to charge, the charger output voltage specification is DC 16.8V~5A max.

10. AC Power Switch
The AC power button controls the AC output of the TH01. The LCD display will light up and show the power percentage, AC ON.

11. AC output socket
Charging devices that require 220-240V AC charger charging, such as laptops, TVs, mini-fridges, vacuum cleaners, etc.

12. Heat Dissipation Fan
Fan prevents TH01 from overheating

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 9

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 13

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 14

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 15

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 16

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 17

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs 18

Tag:

OEM ODM LiFePO4 lithium battery Ternary Portable Lithium Battery 32Ah 16.8V 500W With lithium battery packs

ODM Portable Lithium Battery

500W Portable Lithium Battery

16.8V 32Ah Lithium Battery

1. LCD DisplayIt can display the product's charge level, whether the AC and DC outputs are on. You can turn it on or off by pressing and holding the AC or DC ON/OFF button.

2. 5V USB output port

Charges a variety of devices, such as Apple phones, tablets, speakers, or any device that needs to be charged through the USB-A port. Devices can be charged at a maximum of 5V 2.4A. 3.

3. Quick Charge QC 3.0 Output Port

Charges a variety of devices such as Apple phones, tablets, speakers, or any device that needs to be charged through a USB port. Devices that support fast charging can be charged at a maximum speed of 28W. If your device does not support fast charging, it will charge at normal speed.

5.DC-12V Output PortDevices charged through the DC-12V port charge DC-12V devices. For example, DC12V LED lamp, DC12V refrigerator, device can be charged at max.The device can be charged at a maximum of DC12V 7A.

6. DC Power SwitchPress and hold the DC button to turn on the DC output. The LCD display will light up and show the power percentage, DC ON.

7. Car Cigarette Lighter OutletCharging devices that require charging for the car port, such as drone batteries. The DC port outputs DC12V voltage.

8. IlluminationWith the DC output on, double-click the DC button again to turn on the illumination, then click the DC button again to switch the mode of the illumination, and double-click the DC button again to turn off the illumination,Close the lighting.

9. Charging InterfaceTH01 needs to use professional charger to charge, the charger output voltage specification is DC 16.8V~5A max.

10. AC Power SwitchThe AC power button controls the AC output of the TH01. The LCD display will light up and show the power percentage, AC ON.

11. AC output socketCharging devices that require 220-240V AC charger charging, such as laptops, TVs, mini-fridges, vacuum cleaners, etc.

12. Heat Dissipation FanFan prevents TH01 from overheating
