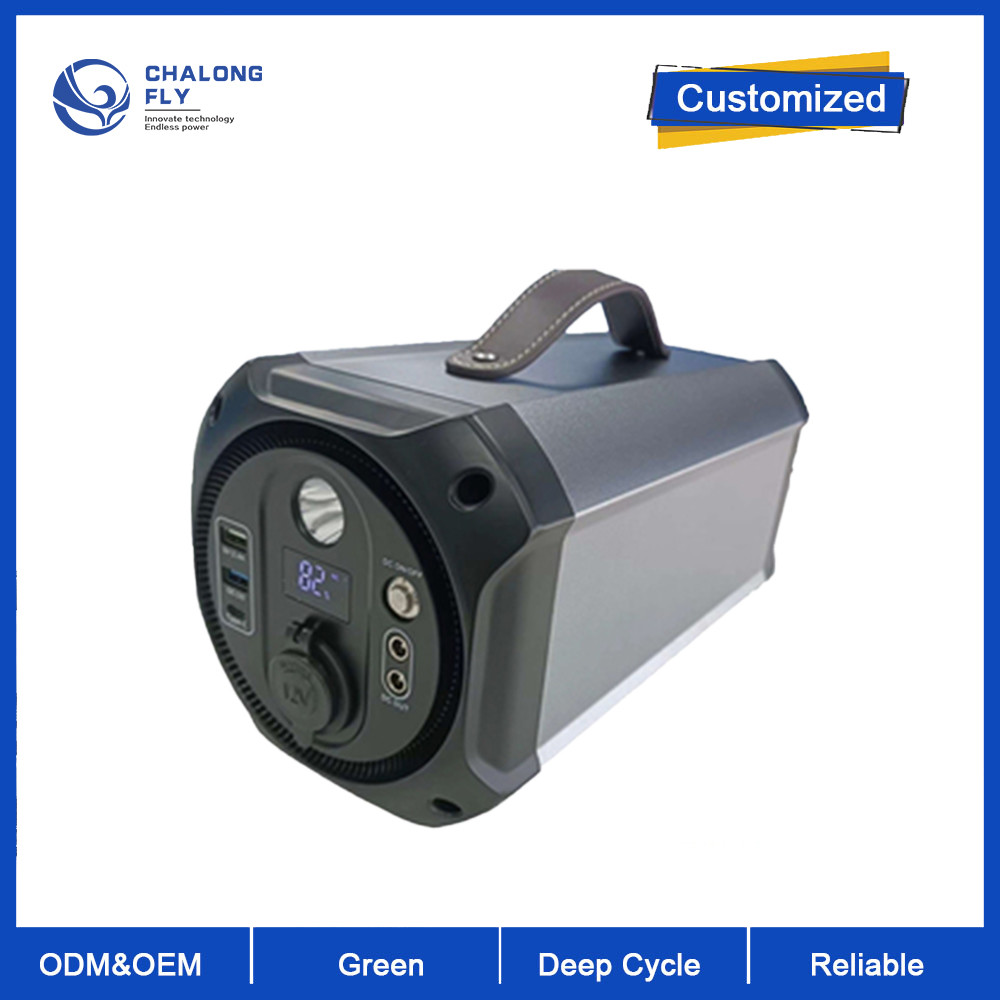

Outdoor 32Ah 14.8V Ternary Lithium Battery Multifunctional Portable

Contact Now

Outdoor 32Ah 14.8V Ternary Lithium Battery Multifunctional Portable

Minimum Order Quantity :	1 unit	Price :	Negotiable
Packaging Details :	Wooden case and Carton case	Delivery Time :	7-15 working days
Payment Terms :	T/T	Supply Ability :	1000 units per month

Place of Origin:	Hunan,China	Brand Name:	CLTF
Certification:	CE	Model Number:	CLF-0061

Detail Information
Nominal Capacity:	32Ah	Nominal Voltage:	16.8V
Energy:	460WH	Dimensions(L×W×H):	298148148mm
Certificate:	CE UN38.3 FCC RoHS	Application:	Home, Solar System, Industrial, Villa, Telecom
OEM/ODM:	Acceptable	Battery Type:	Ternary Lithium Battery
Weight:	Approx: 63kg	Cycles:	≥1000 Times
Charging Temperature:	32-122°F (0-50°C)
High Light:	14.8V Ternary Lithium Battery , Multifunctional Ternary Lithium Battery , 32Ah Lithium Battery

Product Description

32Ah 14.8V Ternary Lithium Battery Portable Outdoor Multifunctional Energy Storage Battery

No.		TH01
Net Weight		4.2Kg
Dimensions		298x148x148mm
Capacity		460Wh /16.8V 32Ah
Certification		CE UN38.3 FCC RoHS
AC output		500W(Peak 600W),220Vac 50Hz
5V USB Output		5V DC,2.4A,12Wmax,per port
QC 3.0 fast charging		5V 3A DC, 9V 2A DC, 12V 1.5A DC,18W
Type-C Output		3A DC , 9V 2A DC, 12V 1.5A DC, 18W max
DC 12V output(x2)		84W, 12V DC, 10A max (no short circuit protection)
Car Power output(x1)		94.5W, 13.2V DC, 7A max
AC charging input voltage		220-240Vac 50Hz
AC Charging Input Power		TH01Charging Power 84W max. 16.8V DC 5A max
Cell type		Ternary lithium battery
Cell Capacity		14.8V 32AH
Discharge temperature		-4-140°F(-20-60℃)
Charging temperature		32-122°F(0-50℃)
Cycle life		≥1000 times

Outdoor 32Ah 14.8V Ternary Lithium Battery Multifunctional Portable 0

1. LCD Display
It can display the product's charge level, whether the AC and DC outputs are on. You can turn it on or off by pressing and holding the AC or DC ON/OFF button.

2. 5V USB output port

Charges a variety of devices, such as Apple phones, tablets, speakers, or any device that needs to be charged through the USB-A port. Devices can be charged at a maximum of 5V 2.4A. 3.

3. Quick Charge QC 3.0 Output Port

Charges a variety of devices such as Apple phones, tablets, speakers, or any device that needs to be charged through a USB port. Devices that support fast charging can be charged at a maximum speed of 28W. If your device does not support fast charging, it will charge at normal speed.

4. Quick Charge Type-C Output Port
Devices that charge through the Type-C port, such as Apple computers, Android phones, or other devices, can be charged through the TH01 Type-C port charging. Devices that support fast charging can be charged at a maximum speed of PD18W. If your device does not support fast charging, the device will charges at normal speed.

5.DC-12V Output Port
Devices charged through the DC-12V port charge DC-12V devices. For example, DC12V LED lamp, DC12V refrigerator, device can be charged at max.The device can be charged at a maximum of DC12V 7A.

6. DC Power Switch
Press and hold the DC button to turn on the DC output. The LCD display will light up and show the power percentage, DC ON.

7. Car Cigarette Lighter Outlet
Charging devices that require charging for the car port, such as drone batteries. The DC port outputs DC12V voltage.

8. Illumination
With the DC output on, double-click the DC button again to turn on the illumination, then click the DC button again to switch the mode of the illumination, and double-click the DC button again to turn off the illumination,Close the lighting.

9. Charging Interface
TH01 needs to use professional charger to charge, the charger output voltage specification is DC 16.8V~5A max.

10. AC Power Switch
The AC power button controls the AC output of the TH01. The LCD display will light up and show the power percentage, AC ON.

11. AC output socket
Charging devices that require 220-240V AC charger charging, such as laptops, TVs, mini-fridges, vacuum cleaners, etc.

12. Heat Dissipation Fan
Fan prevents TH01 from overheating

Product Packaging

To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

1) Inner box - Carton - Pallet- Container

2) Packaging also can be made by customers requirements

Certifications

FAQs:

Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!

Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed

Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.

Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.

Tag:

Outdoor 32Ah 14.8V Ternary Lithium Battery Multifunctional Portable

14.8V Ternary Lithium Battery

Multifunctional Ternary Lithium Battery

32Ah Lithium Battery

1. LCD Display It can display the product's charge level, whether the AC and DC outputs are on. You can turn it on or off by pressing and holding the AC or DC ON/OFF button.

2. 5V USB output port

Charges a variety of devices, such as Apple phones, tablets, speakers, or any device that needs to be charged through the USB-A port. Devices can be charged at a maximum of 5V 2.4A. 3.

3. Quick Charge QC 3.0 Output Port

Charges a variety of devices such as Apple phones, tablets, speakers, or any device that needs to be charged through a USB port. Devices that support fast charging can be charged at a maximum speed of 28W. If your device does not support fast charging, it will charge at normal speed.

5.DC-12V Output Port Devices charged through the DC-12V port charge DC-12V devices. For example, DC12V LED lamp, DC12V refrigerator, device can be charged at max.The device can be charged at a maximum of DC12V 7A.

6. DC Power Switch Press and hold the DC button to turn on the DC output. The LCD display will light up and show the power percentage, DC ON.

7. Car Cigarette Lighter Outlet Charging devices that require charging for the car port, such as drone batteries. The DC port outputs DC12V voltage.

8. Illumination With the DC output on, double-click the DC button again to turn on the illumination, then click the DC button again to switch the mode of the illumination, and double-click the DC button again to turn off the illumination,Close the lighting.

9. Charging Interface TH01 needs to use professional charger to charge, the charger output voltage specification is DC 16.8V~5A max.

10. AC Power Switch The AC power button controls the AC output of the TH01. The LCD display will light up and show the power percentage, AC ON.

11. AC output socket Charging devices that require 220-240V AC charger charging, such as laptops, TVs, mini-fridges, vacuum cleaners, etc.

12. Heat Dissipation Fan Fan prevents TH01 from overheating
