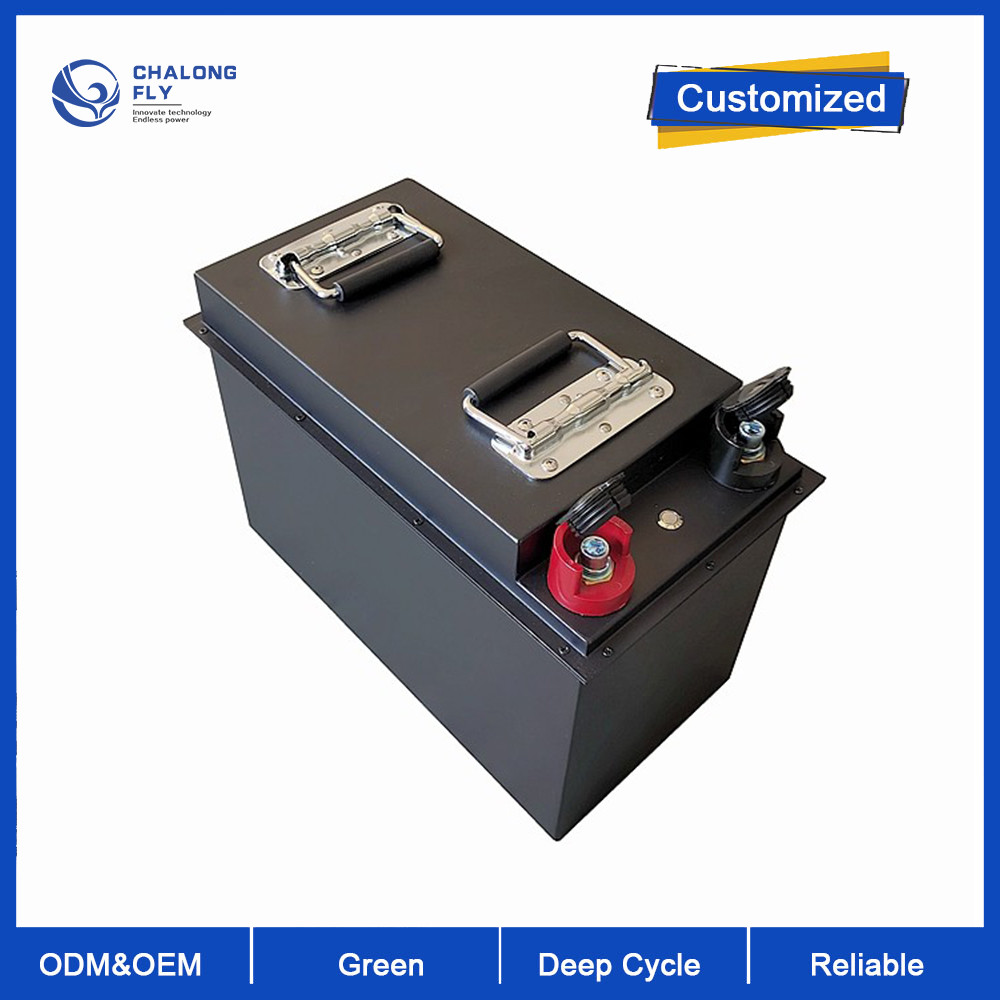

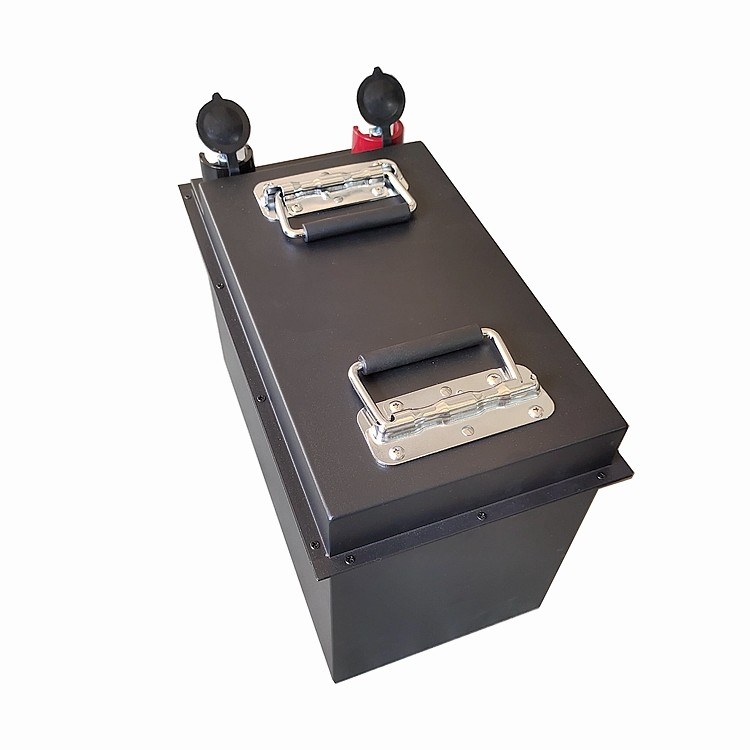

CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : CLF
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 1 unit | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | CE | Model Number: | CLF-0056 |
|
Detail Information |
|||
| Nominal Capacity: | 300Ah | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Battery Type: | LiFePO4/Ternary Lithium Battery | Energy: | 1.2KWh |
| Internal Resistance: | ≤20mΩ | Usage: | RV, Energy Storage, Outdoor Equipment |
| Cycle Life: | > 3000 Cycles | Weight: | 226.5±2Kg |
| Charging Method: | CC/CV | ||
| High Light: | 1.2KWh RV Camper Battery,310ah RV Camper Battery,12.8V Lifepo4 RV Battery |
||
Product Description
| Items | Parameter |
| Battery Type | LiFePO4/Ternary lithium battery |
| nominal voltage | 12v |
| Nominal Capacity | 300Ah |
| Energy | 1.2KWh |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 4 parallel connected application |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 14±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Standard Charge Current | 40A |
| Max. Charge Current | 150A |
| Standard Continuous Discharge Current | 40A |
| Max. Continuous Discharge Current (<30min) | 150Ah |
| Pulse Discharge Current (<3s) | 900Ah |
| Cycle Life | > 3000 cycles |
| Dimension (mm) | Length: 370± 2 Width: 200 ± 2 Height: 265 ± 2 |
| Weight | 226.5±2Kg |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
| Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
| Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
BMS Function introduction:
The BMS is designed for 16 series lithium battery
The BMS have all functions which are:
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Contact us for more informations!
