CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : Rosa Liu
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 1 unit | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 1000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | CLTF |
|---|---|---|---|
| Certification: | CE | Model Number: | CLF-0010 |
|
Detail Information |
|||
| Nominal Capacity: | 500Ah | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Cycle Life: | 1500 Times (+25℃ 0.2C 100%DOD） | Size: | 480mm*311.5mm*282.5mm |
| Weight: | 56.5KG | Usage: | RV, Energy Storage, Outdoor Equipment, Lighting |
| Type: | Lifepo4/lithium Battery/li-ion Battery | ||
| High Light: | LCD Display RV Camper Battery,500Ah RV Camper Battery,12V Lithium Iron Phosphate Battery |
||
Product Description
| Model | CLF-0010 | |
| Rated Capacity | 500Ah | |
| Nominal Voltage | 12.8V | |
| Serialization | 4S | |
| Internal resistance | ≤100mΩ | |
| Discharge cutoff voltage | 9.6V | |
| Charging protection voltage | 14.4V | |
| Max. Charging voltage | 14.6V | |
| Maximum discharge current | 240A | |
| Maximum charge current | 50A(0.2C) | |
| Peak current | 400±2 2S | |
|
Rated discharge Current |
240A | |
| Charging method | CC/CV | |
|
Cycle (+25℃ 0.2C 100%DOD) |
1500 times | |
| Operating Temperature Range | Charging: 0~45℃ | |
| Discharge:-20~55℃ | ||
| Storage temperature |
-10~35℃ (60-80% SOC storage, need to recharge every 2 months) |
|
| Dimension parameters | ||
| L*W*H | 480mm*311.5mm*282.5mm | |
| Weight | 56.5KGS | |
| Packaging and Delivery | ||
| Packaging details | Standard carton with wooden package | |
Features:

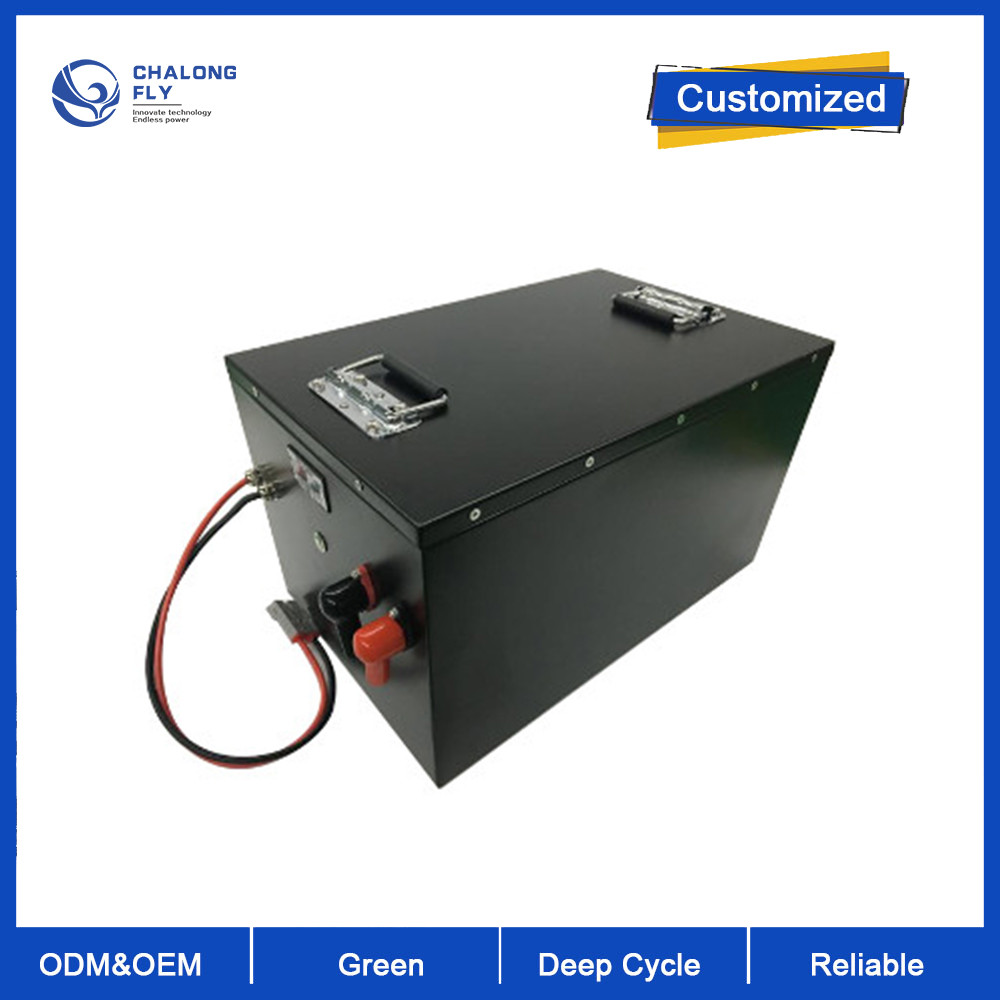

Front panel content: through-wall terminal with protective cover and LCD display
Model: 12V500AH
Dimension: 480mm*311.5mm*282.5mm;
Parameter:
Working environment:-20℃-60℃;
Lithium iron phosphate battery 4S;
Charge cutoff voltage:14.4V;
Discharge cutoff voltage:9.6V;
Continuous 240A discharge;50A Charging;
Wall terminal with protective cover and LCD display
Application: Electric car, RV, power
FAQs:
Q: Are you manufacturer?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Thanks to send us your requirements to custom the batteries.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Contact us for more informations!
