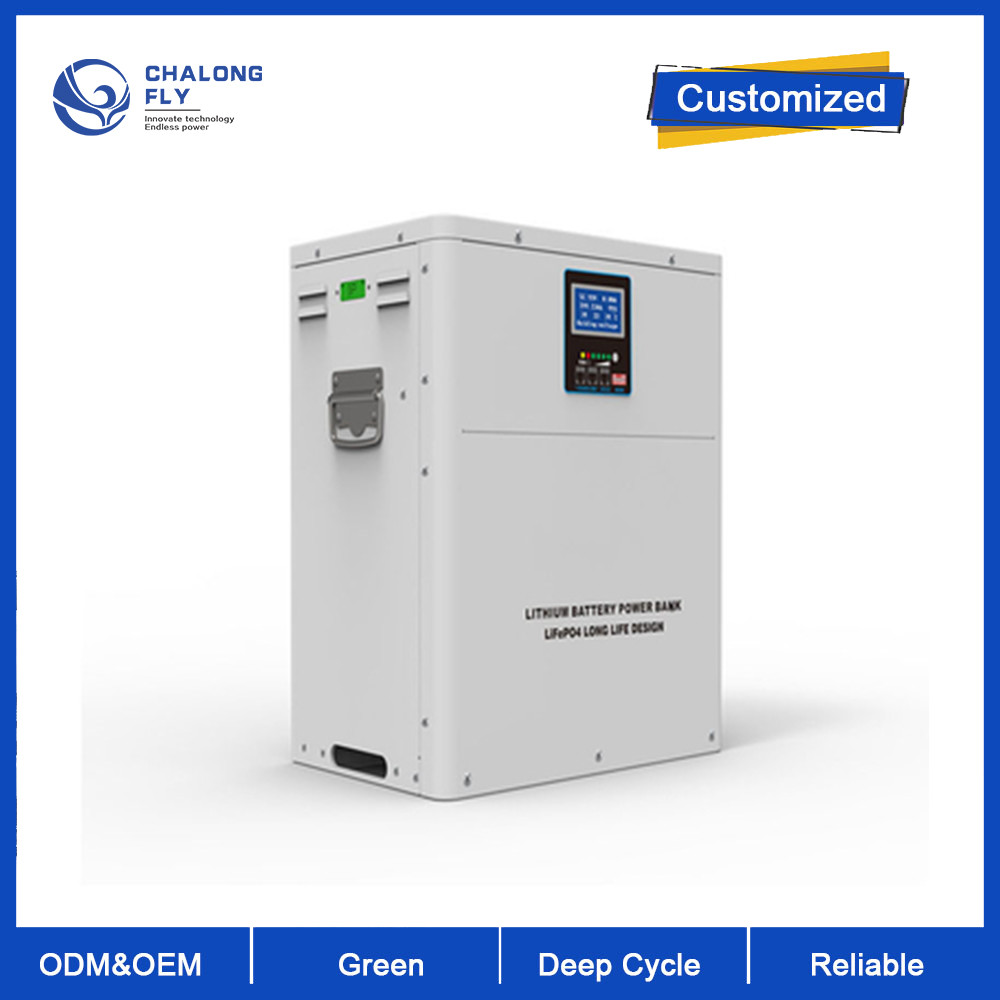

LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE Model Number: CLF-0002

Detail Information

Nominal Capacity: 200Ah Nominal Voltage: 24V/48V
Cycle Life: 3000 Times Size: 486cm * 226cm * 770cm ;
Weight: 71KG/136KG Custom: Accept
Application: Home, Solar System, Industrial, Villa, Telecom Usage: UPS, Solar System, Camping Car, Emergency, Telecom
Type: LiFePO4 Color: White, Can Be Customized
High Light:

LiFePO4 Home Solar Storage System

,

24v Home Solar Storage System

,

48v Lithium Iron Phosphate Battery

Product Description

LiFePO4 Long Life Design Solar Home Storage System 24v 48v Lithium Iron Phosphate Battery Pack

Model CLF-HSB-0002 CLF-HSB-0002
Rated Capacity 200Ah 200Ah
Nominal Voltage 22.4~29.2V 44.8~58.4V
Maximum discharge current 150A 150A
Maximum charge current 100A 100A

Cycle

(+25℃ 0.2C 100%DOD)

>3000 times
Storage Temperature Range

0-30

6 months at 25

Certifications UN38.3,IEC62619,MSDS,CE
Dimension parameters
Dimension L486*W226*H770MM L486*W356*H770MM
Weight 71kg 136kg
Protection parameters
Protection functions Overcharge protection, over discharge protection, overcurrent protection, short circuit protection, over temperature protection



Features:

  1. 1-5A cell equalizer
  2. Service life of more than 3000 charge discharge cycles
  3. Function of overcharge and discharge protection
  4. Overcurrent and short-circut protection functions
  5. Over temperature protection
  6. Horizontal and wall hanging boxes
  7. Applied to EU energy storage system and off grid solar power generation system
  8. Excellent standby power consumption as low as 4mA
  9. Built in intelligent BMS to keep the battery in working state all the time
  10. 10.Automatically cut off the output after no charge or discharge for 30 days to ensure safety, or manually cut off the output
  11. 11.3-year warranty, 5-8 years service life, more stable and safe
  12. 12.Application scope: EU energy storage system, solar energy storage system, UPS power supply, inverter power supply, railway power supply, telecommunication power supply system, medical electronics, commercial finance, security communication, transportation logistics, etc

LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 0

LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 1

LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 2





LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 3



LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 4



LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 5



LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 6



LiFePO4 Home Solar Storage System 24v 48v Lithium Iron Phosphate Battery Pack 7





FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.


Contact us for more informations!
