CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht

Minimum Order Quantity : 1 Packaging Details : standard export package
Payment Terms : L/C, T/T Supply Ability : 10000Piece/Pieces per Week
Place of Origin: CHINA Brand Name: CLF or OEM
Certification: UN38.3, MSDS, CB, CE ROSH Model Number: CLF-R4723

Detail Information

OEM/ODM: Accepted Battery Type: LiFePO4
Rated Voltage: 96V Battery Working Voltage: 75~109.5V
Rated Capacity: 300ah Battery Cycle Life: More Than 3000times
Battery Weight: 250KG Waterproof Standard:: IP67
Warranty: 2years Application: Electric Vehicle,electric Boat,electric Yacht,marine
Highlight:

Marine EV Battery Pack

,

96V 144V 300ah Lifepo4 Battery

,

CLF OEM ODM Electric Boat Battery

Product Description

CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 0

CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 1

Technical Parameter



MODEL
CLF96300
Cell Type - Chemistry
Prismatic- LiFePO4
Rated Capacity
304Ah
Rated Voltage
96V
Energy
29.18KWh
Resistance
30mΩ
Self Discharge
<3% per month
PDU
BMS, 400A relays, fuses, COM socket
Dimensions (L x W x H)
L1300*W500*H380mm
(Can make it smaller if you want)
Weight
2540Kg
Enclosure Protection
IP67 stainless steel case
Discharge Cut-off Voltage
75V
Max Continuous Discharging Current
300A
Peak Discharge Current
400A for 60 seconds
Recommended Discharge Current
300A
Charging Limited Voltage
109.5V
Max Charging Current
200A
Recommended Charge Current
100A
Charge Temperature Range
0~50℃
Discharge Temperature Range
-20~60℃
Recommended Operating Temperature
15~35℃
Available on request
Size, C rate, Communication protocol



CORE ADVANTAGE


Most safe LFP battery technology, more powerful
LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It provides a reliable, efficient, and eco-friendly power source for electric boats, allowing them to travel longer distances and operate more smoothly.
CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 2

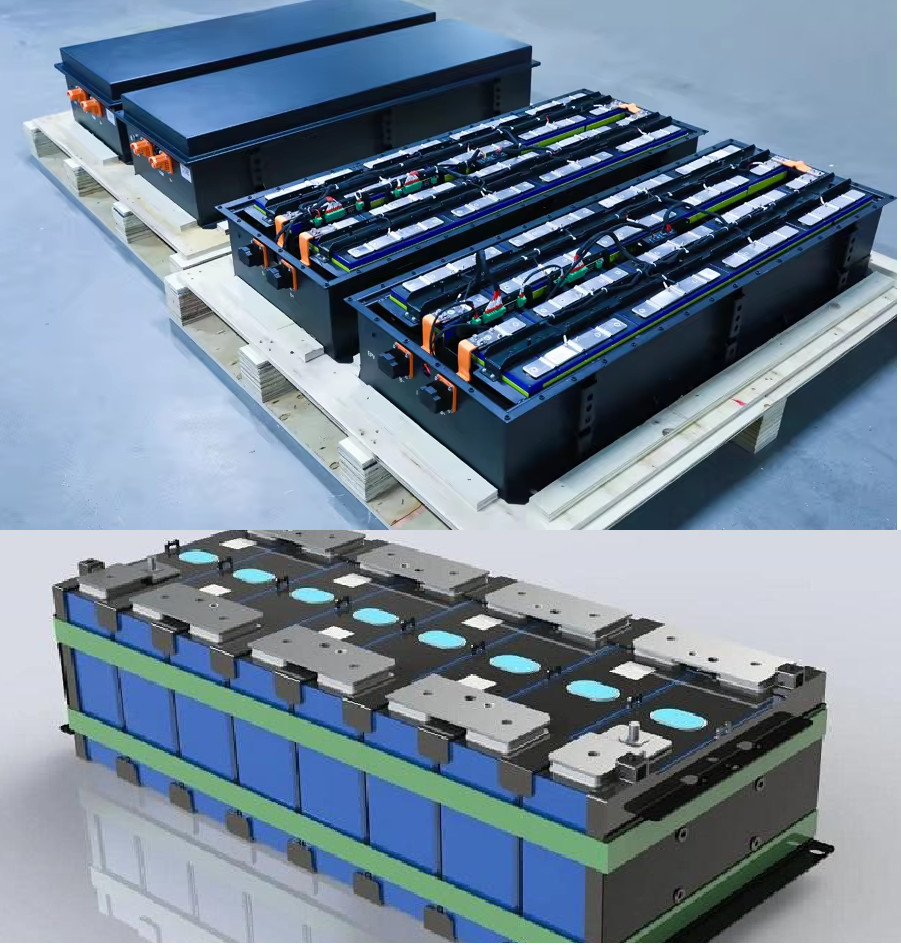

Laser Welding
It can further strengthen the connection and completely eliminate the risk of screws falling. The contact surface between the screw and the bus bar is reduced to improve the current capability. lt can also reduce internal resistance and reduce power consumption.
CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 3
Smart BMS to manage the battery
Short-circuit protection,Overcharge and over-discharge protection, and over-temperature protection to ensure the safety of the battery..
Cell balancing, Temperature sensing and control, State-of-charge (SOC) estimation, Real-time monitoring and management,
Communication interface:CAN,RS485 optional .
CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 4

Stainless steel case with IP67 waterproof

304/316 stainless steel case is highly resistant to corrosion, making it suitable for use in variousenvironments, including marine and chemical industries.
A stainless steel case with IP67 waterproof rating offers a rugged, long-lasting, and moisture-resistant enclosure that provides protection for battery pack in harsh environments.
CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 5
Optional thermal management system
liquid cooling and heating system can adapt the battery to different working environment temperatures .Battery thermal management systems are designed to regulate the temperature of batteries in electric vehicles or other battery-powered systems. It is good in maintaining the overall health and performance of batteries. that helps maintain the optimal temperature to ensure optimal battery performance.
CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 6

MAIN APPLICATION



CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 7

CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 8CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 9CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 10CLF OEM ODM Electric Boat Marine EV Battery Pack 96V 144V 300ah Lifepo4 Battery For Electric Boat/Yacht 11
