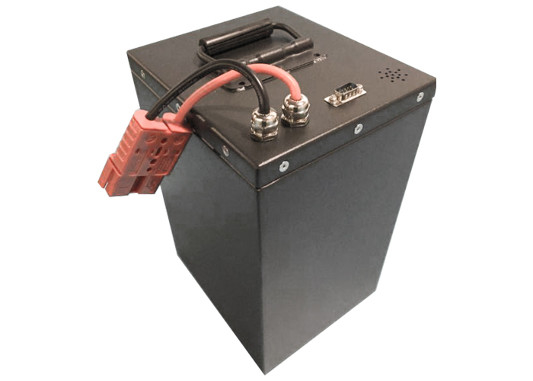

Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE Model Number: CLF-0019

Detail Information

Nominal Capacity: 35Ah Nominal Voltage: 72V
Serialization: 20S Size: 290*172*200mm
Weight: 17.6KG Internal Resistance: ≤100mΩ
Usage: Electric Vehicles, Electric Tricycles Battery: Three Yuan Soft Pack Battery
Cycle: 1500 Times (+25℃ 0.2C 100%DOD) Rated Discharge Current: 30A
High Light:

Ternary Electric Motorcycle Lithium Battery

,

20S Electric Motorcycle Lithium Battery

,

72V 35Ah Lithium Battery

Product Description

Electric Motorcycle EV Ternary Lithium Battery With Bluetooth Protection Board

Model CLF-0019
Rated Capacity 32Ah
Nominal Voltage 72V
Serialization 20S
Internal resistance ≤100mΩ
Discharge cutoff voltage 56V
Charging protection voltage 84V
Max. Charging voltage 85V
Maximum discharge current 65A
Maximum charge current 7A
Peak current 100±3A 2S

Rated discharge

Current

30A
Charging method CC/CV

Cycle

(+25℃ 0.2C 100%DOD)

1500 times
Operating Temperature Range Charging: 0~45℃
Discharge:-20~55
Storage temperature

-10~35℃

(60-80% SOC storage,

need to recharge every 2 months)

Dimension parameters
L*W*H 290*172*200mm
Weight 17.6KGS
Packaging and Delivery
Packaging details Standard carton with wooden package
Battery:
Three yuan soft pack battery
Cycle graph
Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 0
Cell discharge performance:
Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 1





Model: 72V/35AH



Specification L x W x H: 290*172*200mm



Parameters: Ternary lithium 20S,

                    Continuous working current 65A,

                    7A charging, instantaneous maximum current 100A (2S),

                    Anderson interface,

                    Bluetooth protection board,

                    Communication host computer,

                    Charging upper limit 84V,

                    Discharge cutoff 56V,

                    Xinxin shell spray,

                    Weight 17.6 KG.



Applications: electric vehicles, electric tricycles, electric wheelchairs

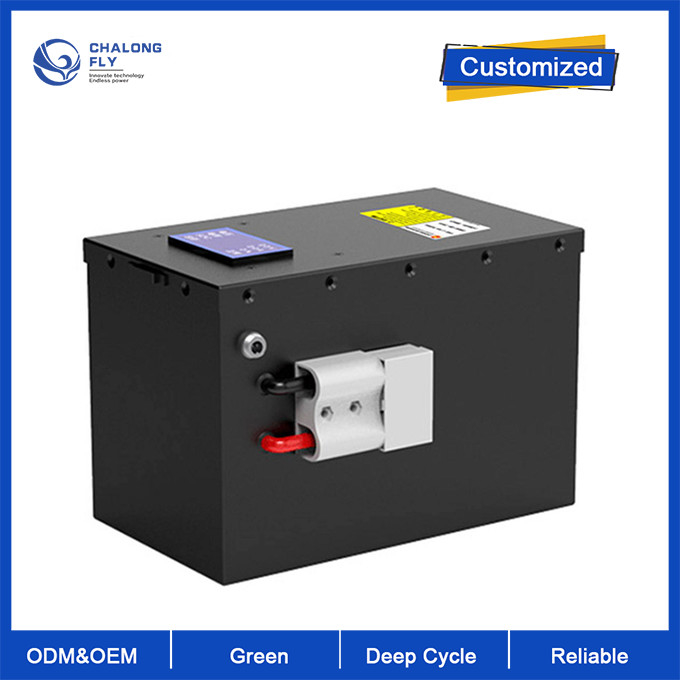

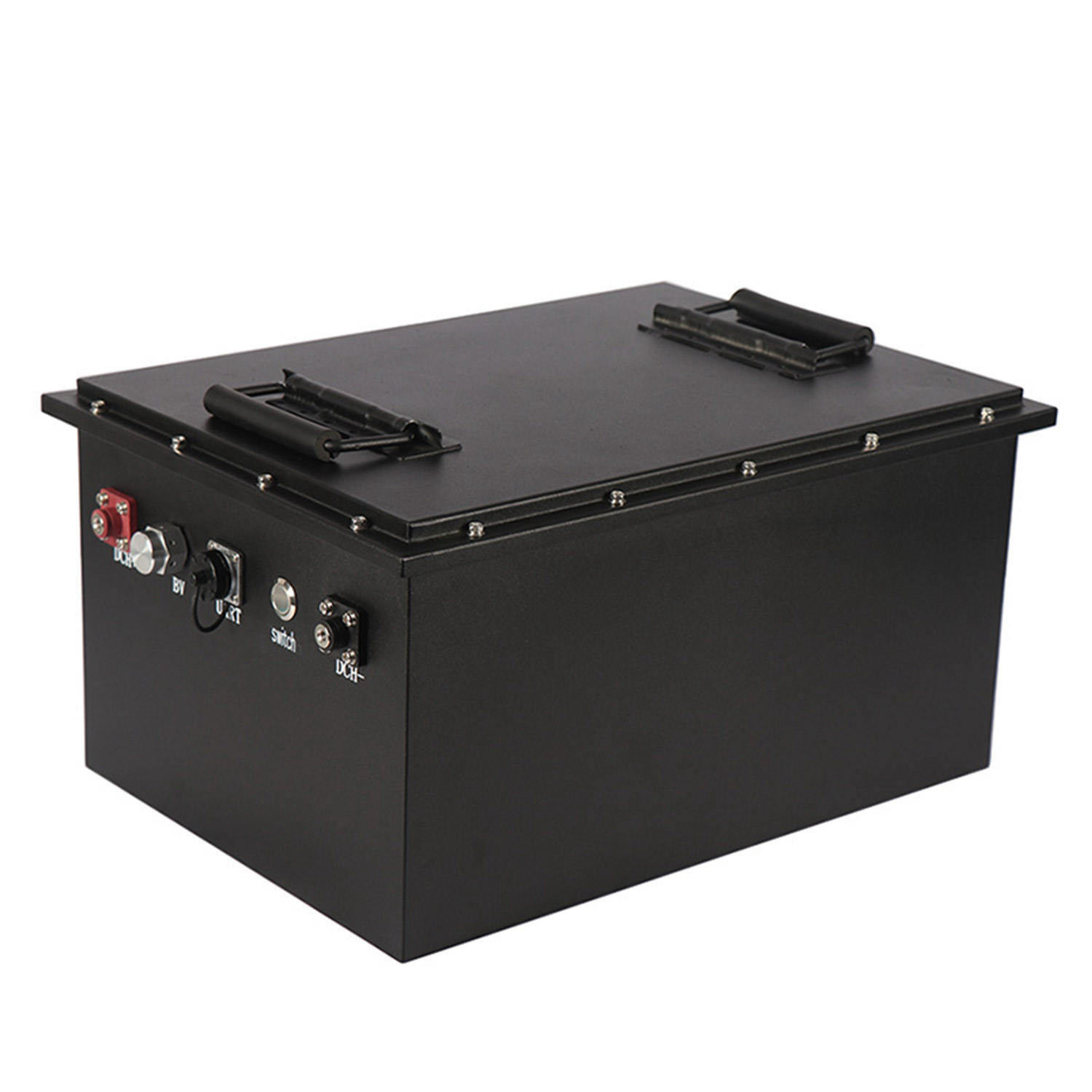

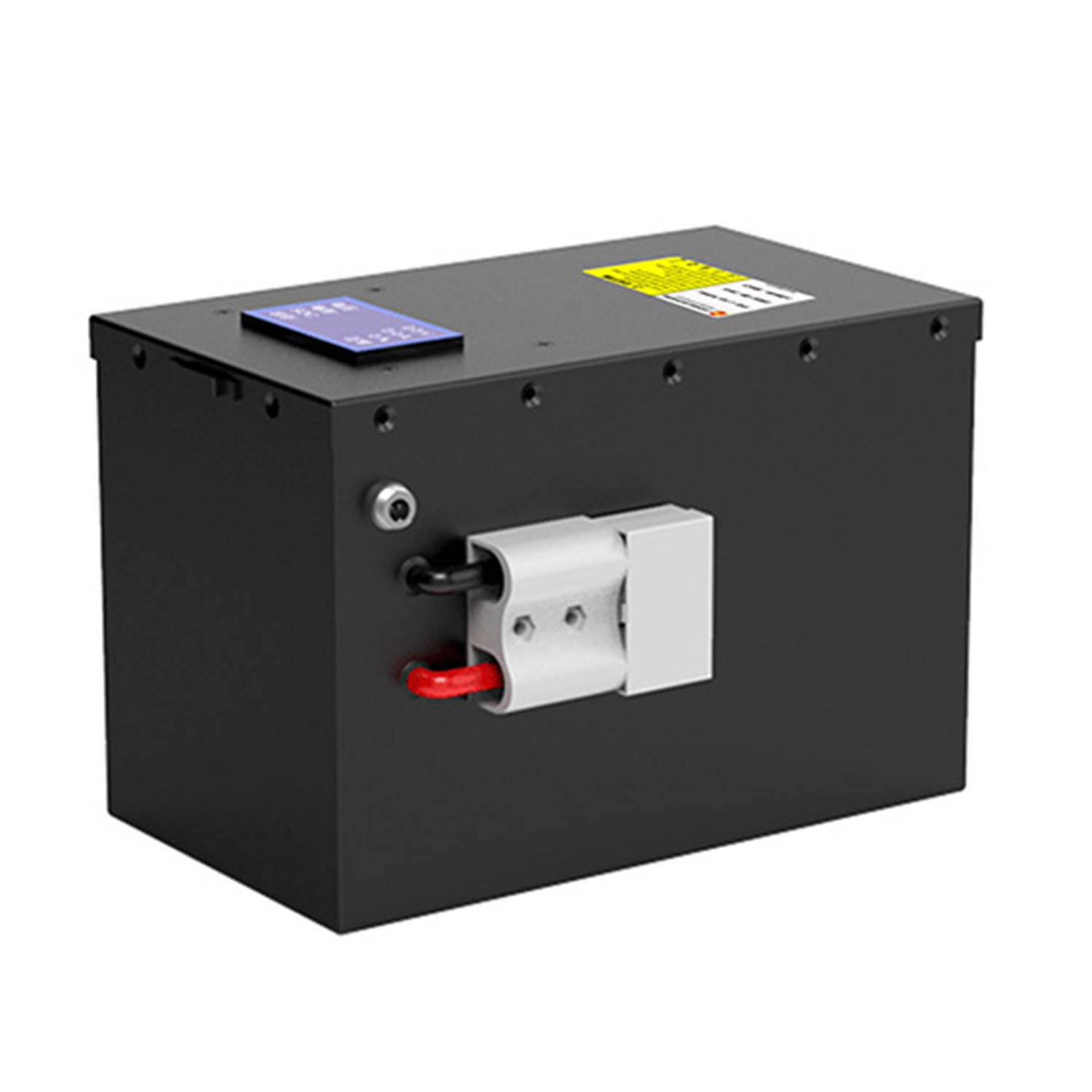

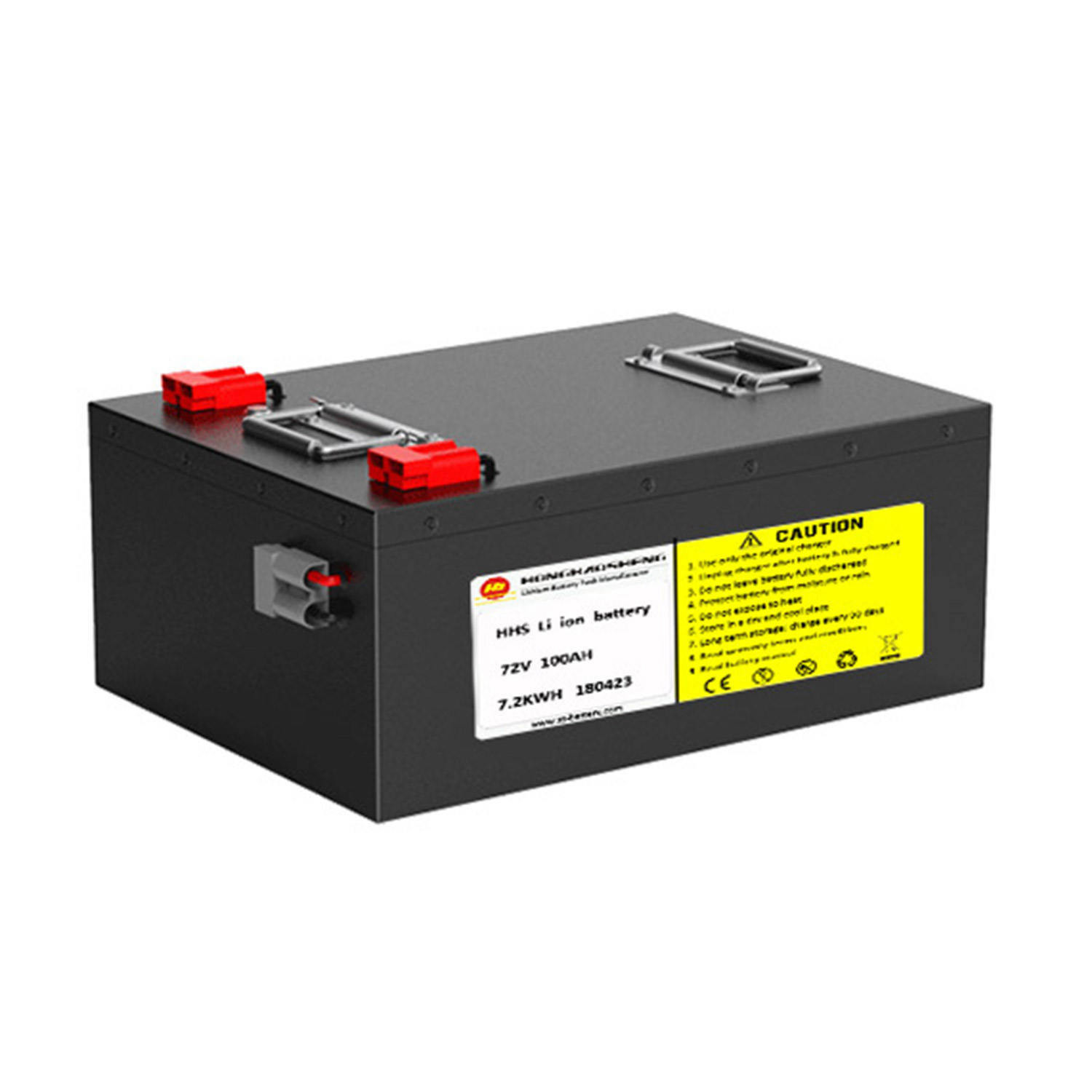

Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 2Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 3Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 4Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 5Ternary 72V 35Ah Electric Motorcycle Lithium Battery 20S With Protection Board 6





FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

     Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.


Contact us for more informations!
