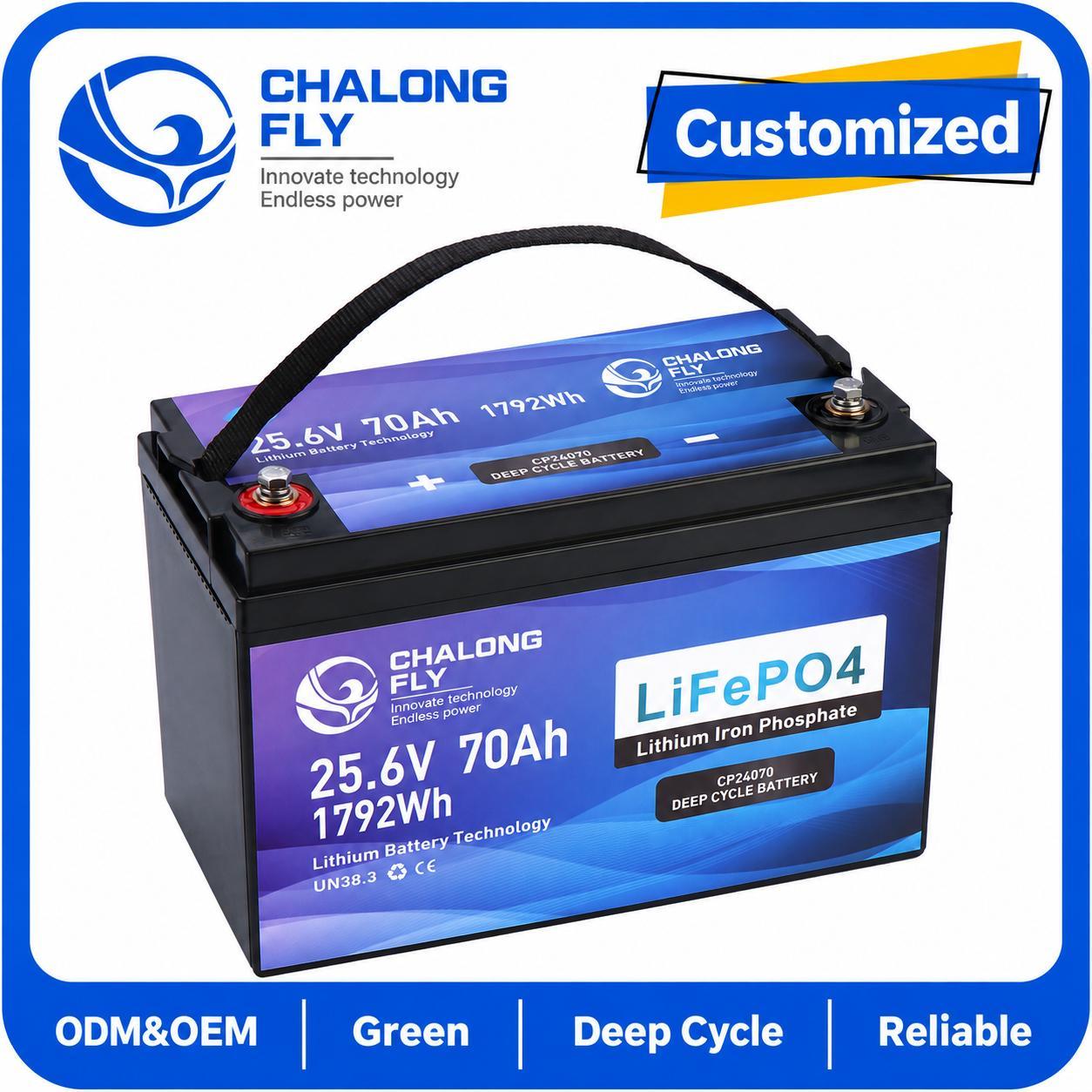

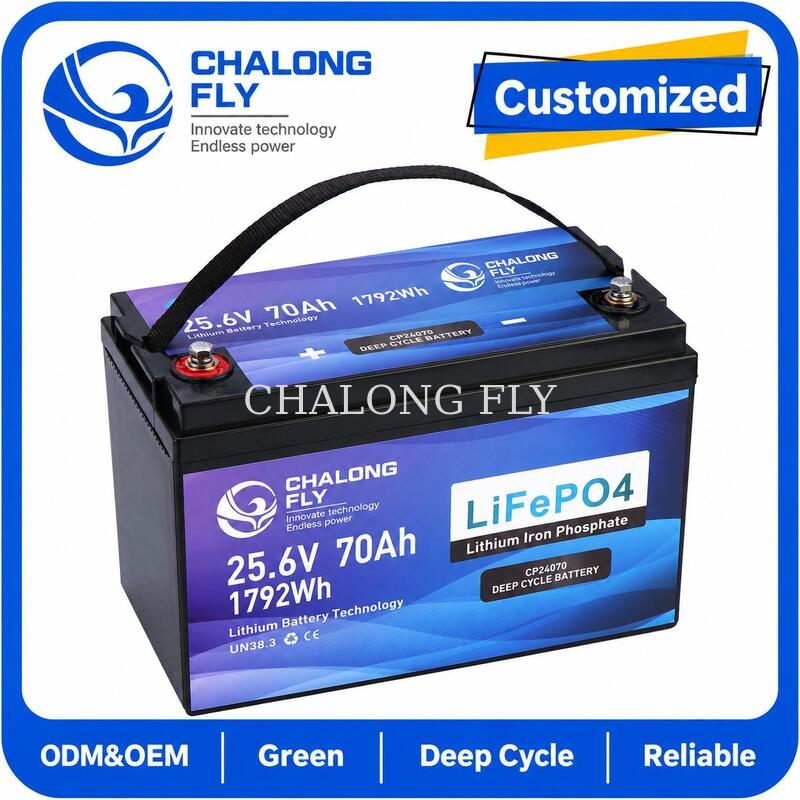

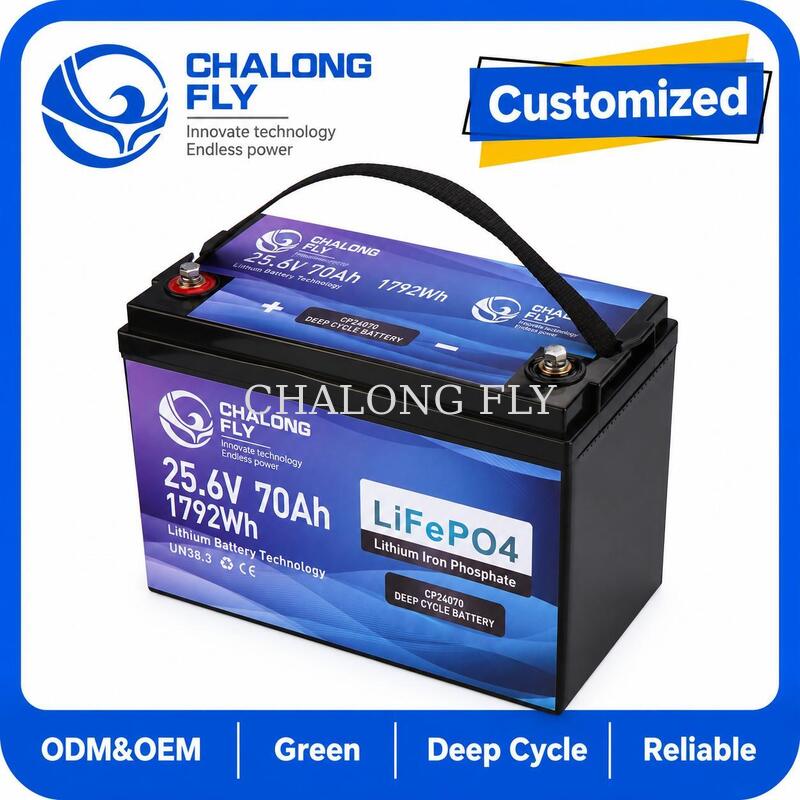

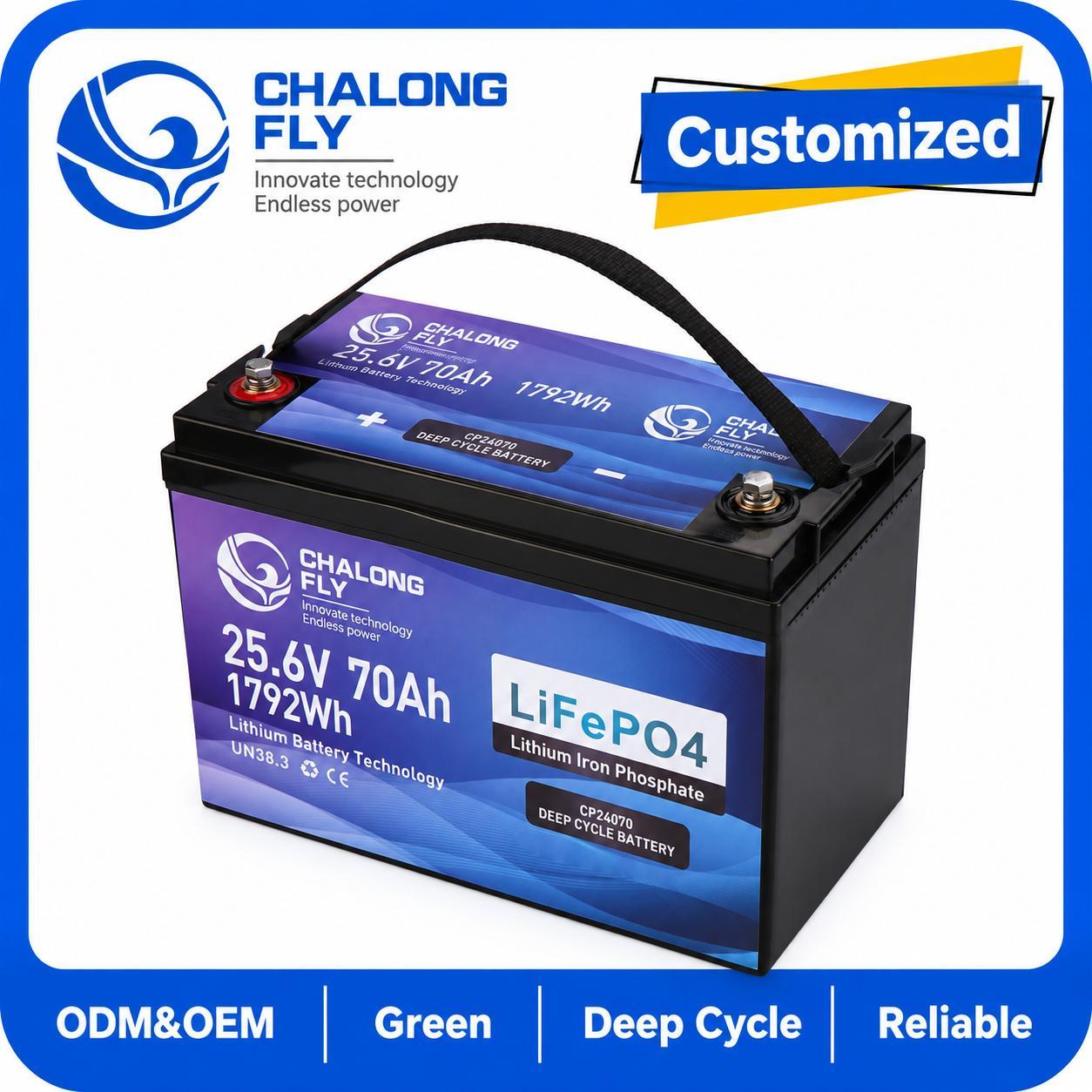

25.6V 70Ah LiFePO4 Battery with Bluetooth Remote Diagnostics and 1.792kWh for Mobility Scooters and Wheelchairs

Contact Now

25.6V 70Ah LiFePO4 Battery with Bluetooth Remote Diagnostics and 1.792kWh for Mobility Scooters and Wheelchairs

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	25–35 Working Days
Supply Ability :	2,000 Pieces per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-MOB-25V70Ah-RD

Detail Information

Highlight:

25.6V 70Ah LiFePO4 mobility scooter battery

wheelchair battery with Bluetooth diagnostics

LiFePO4 machine battery with remote monitoring

Product Description

Smart Power for Mobility Equipment

25.6V 70Ah LiFePO4 Mobility Scooter & Wheelchair Battery

1.792kWh mobility battery with 70A continuous output, Bluetooth monitoring and optional remote diagnostics and BMS upgrade for electric wheelchairs and mobility scooters.

Long-Range Power for Mobility Scooters and Wheelchairs

The Chalongfly 25.6V 70Ah LiFePO4 battery is designed for mobility scooters, electric wheelchairs and other powered mobility equipment requiring substantial battery capacity, stable discharge performance and intelligent battery management.

With 1792Wh of nominal energy, the battery provides a high-capacity platform for long-range mobility applications while maintaining a compact 24V battery architecture.

Bluetooth monitoring, remote battery diagnostics, optional remote BMS upgrades and low-temperature heating can be configured according to the final mobility system.

Main Specifications

Model	CLF-MOB-25V70Ah-RD
System Voltage	24V
Nominal Voltage	25.6V
Rated Capacity	70Ah
Nominal Energy	1792Wh / 1.792kWh
Battery Chemistry	LiFePO4
Charge Current	70A Reference
Continuous Discharge	70A
Peak Discharge	140A
Maximum Charge Voltage	29.2V
Dimensions	329 × 171 × 215mm
Approximate Weight	17kg

1.792kWh Mobility Energy

25.6V × 70Ah = 1792Wh

The high-capacity battery platform is suitable for mobility equipment requiring extended operating time. Actual driving range depends on motor power, vehicle load, passenger weight, terrain, speed and operating temperature.

Bluetooth Battery Monitoring

Bluetooth monitoring provides convenient access to important battery operating information through a compatible mobile device.

SOC	Battery Energy Status Monitoring
Voltage / Current	Real-Time Battery Operating Data
Temperature	Battery Thermal Status
Custom APP	Optional Private-Brand Configuration

Remote Diagnostics & BMS Upgrade

Selected smart BMS configurations can support remote technical-service functions to improve after-sales efficiency.

Historical Battery Data

Battery operating records can be used to help analyze abnormal conditions and support technical troubleshooting.

Remote Diagnostics

Compatible APP and BMS architectures allow technical teams to review battery information without relying only on physical inspection.

Remote BMS Upgrade

Firmware upgrade functionality is available on selected configurations according to the final BMS and software architecture.

Smart BMS Protection

Overcharge protection
Over-discharge protection
Over-current protection
Short-circuit protection
High-temperature protection
Low-temperature protection according to configuration
Cell balancing and battery-status monitoring

Lead-Acid Battery Replacement

The battery can be engineered to replace compatible 24V lead-acid mobility battery systems after electrical and mechanical compatibility has been verified.

System Voltage	24V Compatibility Required
Motor / Controller Current	Must Be Within BMS Capability
Battery Compartment	Dimensions Must Be Confirmed
Connector	Connector and Polarity Must Be Verified
Charger	LiFePO4 Charging Compatibility Required

Optional Low-Temperature Heating

Self-heating can be configured for mobility equipment that must charge in low-temperature environments. Final heating control depends on the selected cells, BMS and minimum operating temperature.

Typical Applications

Mobility Scooters High-capacity 24V lithium power for compatible personal mobility equipment	Electric Wheelchairs Reliable battery solution for power wheelchairs and medical mobility equipment
Lead-Acid Replacement Engineered lithium replacement for compatible 24V AGM and GEL systems	Mobility Equipment OEM Customized battery, APP, BMS, connector and enclosure solutions for manufacturers

OEM and ODM Customization

Battery capacity and current configuration
Smart BMS functions
Bluetooth monitoring
Custom-brand Bluetooth APP
Remote diagnostics and BMS upgrade
Optional self-heating
Battery enclosure dimensions
Power connector and cable configuration
Matched LiFePO4 charger
Logo, model label and private-brand packaging

Information Required for Battery Selection

Mobility scooter or wheelchair brand and model
Original battery voltage and capacity
Original battery quantity
Battery compartment dimensions
Motor rated power
Controller continuous and peak current
Power connector type and polarity
Existing charger specification
Required driving range
Estimated annual purchase quantity

Frequently Asked Questions

Is this a 24V or 25.6V battery?

It is designed for a 24V mobility system and uses a 25.6V nominal LiFePO4 configuration.

How much energy does it provide?

The 25.6V 70Ah configuration provides 1792Wh, or 1.792kWh, of nominal energy.

Does it support Bluetooth?

Yes. Bluetooth battery monitoring is available through a compatible mobile APP.

What is remote diagnostics?

Compatible configurations can provide historical battery data for technical analysis and remote troubleshooting.

Can the BMS be upgraded remotely?

Remote BMS firmware upgrade is available on selected configurations according to the final BMS and software architecture.

Can it replace lead-acid batteries?

Yes, after system voltage, dimensions, motor and controller current, connector and charger compatibility have been confirmed.

What information is required before ordering?

Please provide the mobility equipment model, original battery data, battery compartment dimensions, motor and controller specification, connector, charger and required driving range.

Configure a Smart Mobility Battery

Send Chalongfly your mobility scooter or wheelchair model, original battery specification, motor and controller data, connector, charger and required driving range. Our engineering team will configure the battery, smart BMS, Bluetooth APP, remote diagnostics and optional heating functions for your equipment.
