OEM Custom LiFePO4 Battery with Smart BMS and Metal Enclosure for DC Scissor Lift and Aerial Work Platform

Contact Now

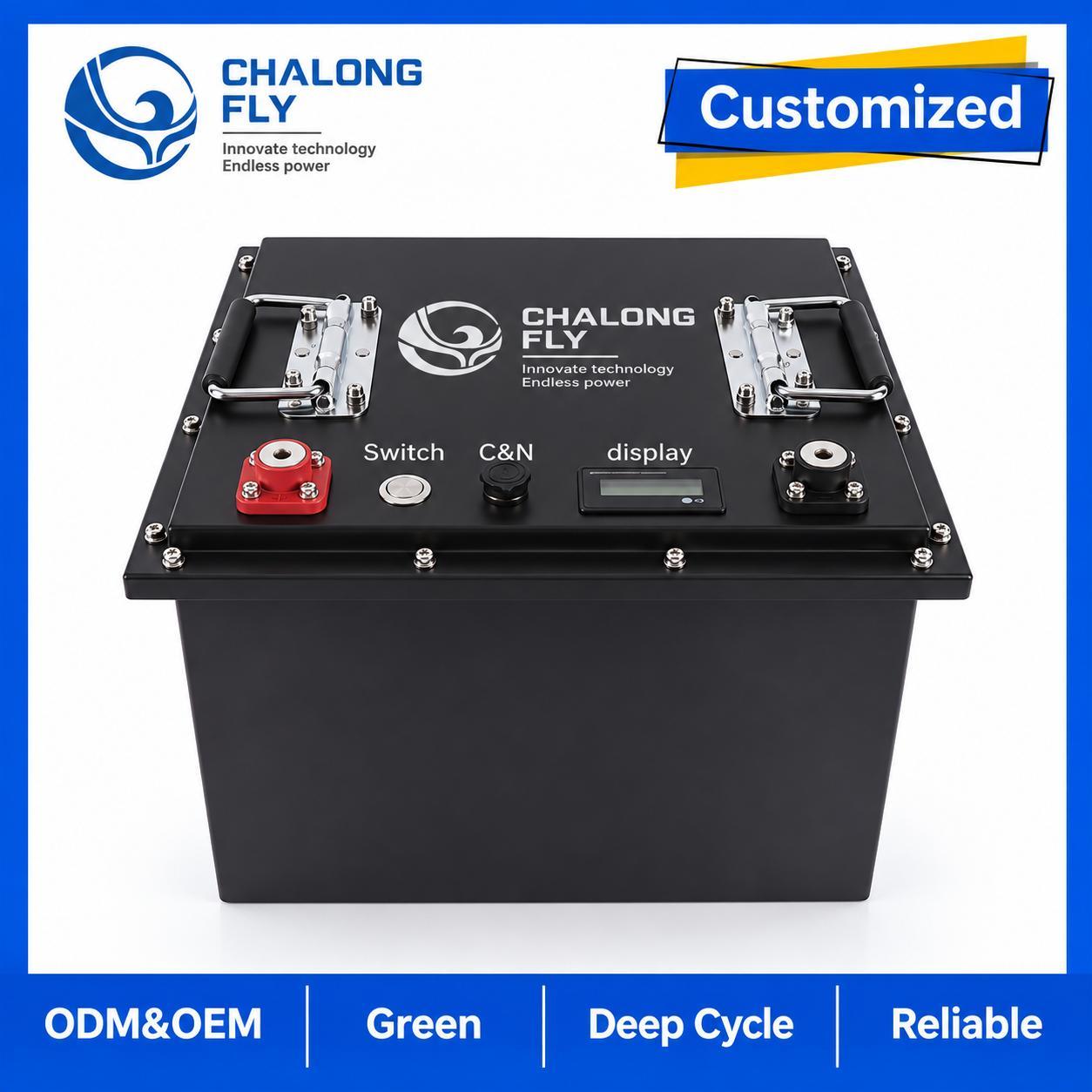

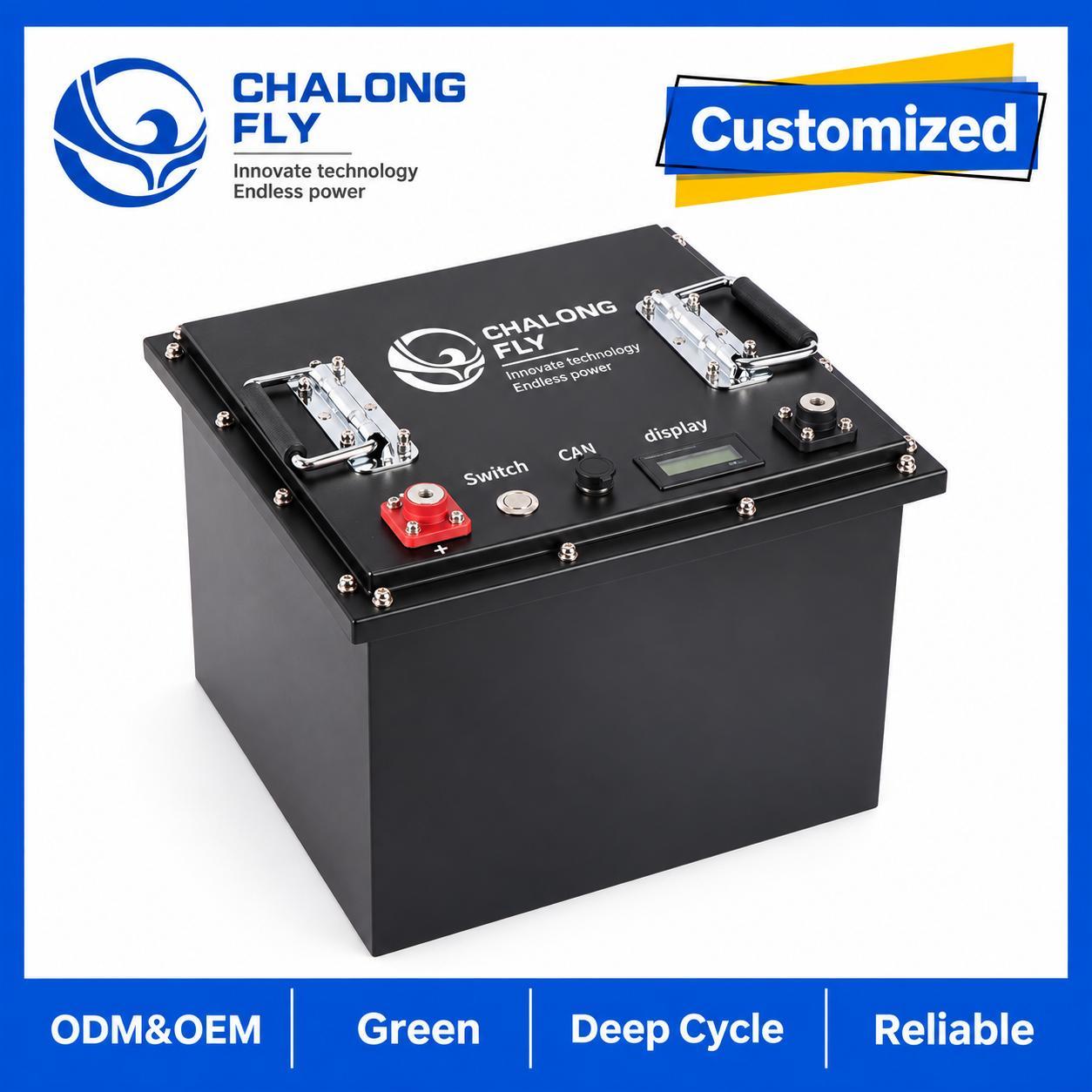

OEM Custom LiFePO4 Battery with Smart BMS and Metal Enclosure for DC Scissor Lift and Aerial Work Platform

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	25–35 Working Days
Supply Ability :	2,000 Pieces per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-AWP-OEM-DC

Detail Information

Highlight:

OEM custom LiFePO4 battery

scissor lift battery with warranty

aerial work platform battery

Product Description

OEM Power Solution for Access Equipment

OEM Custom LiFePO4 Battery for DC Scissor Lift and Aerial Work Platform

Machine-specific lithium battery solution with customized voltage, capacity, smart BMS, metal enclosure, connector, cable harness, charger and optional communication.

Battery Designed Around Your Machine

Chalongfly provides OEM LiFePO4 battery solutions for DC-powered scissor lifts, aerial work platforms, vertical mast lifts and other electric access equipment.

Battery voltage, capacity, enclosure dimensions, BMS current, connector, cable harness, charger and monitoring functions can be configured according to the target machine rather than forcing one standard battery into different equipment.

This battery platform is suitable for new-equipment OEM programs, replacement projects and engineered lead-acid-to-lithium conversions.

Customizable Configuration

Model	CLF-AWP-OEM-DC
Battery Chemistry	LiFePO4
System Voltage	24V / 48V / Customized
Battery Capacity	Customized According to Equipment Runtime
Smart BMS	Integrated
BMS Current	Configured According to Traction and Hydraulic Loads
Communication	CAN / RS485 Optional
Monitoring	SOC Display / Bluetooth Optional
Enclosure	Customized Metal Battery Enclosure
Connector	Custom Power Connector and Cable Harness

Smart BMS for Drive and Hydraulic Loads

Scissor lift battery current must be selected according to both the traction system and the hydraulic lifting system.

Traction Motor Matching

Continuous BMS current is selected according to drive motor power, controller current and machine duty cycle.

Hydraulic Pump Peak Current

Short-duration hydraulic pump demand is evaluated before determining BMS peak-current capability.

Battery Protection

Smart BMS functions can include overcharge, over-discharge, over-current, short-circuit, temperature protection and cell balancing.

Lead-Acid to LiFePO4 Conversion

Chalongfly can develop a lithium replacement for compatible lead-acid aerial work platform battery systems after the complete machine is evaluated.

System Voltage	Must Match Equipment Architecture
Drive / Hydraulic Current	Evaluated Before BMS Selection
Battery Compartment	Dimensions and Mounting Must Be Confirmed
Connector / Harness	Can Be Customized to Original Equipment
Original Charger	Compatibility Must Be Verified

Machine-Specific Enclosure Design

Battery mechanical design can be developed around the original equipment compartment or customer drawings.

Battery Dimensions	Customized
Mounting Points	Customized
Connector Position	Customized
Cable Length	Customized

SOC and Battery Monitoring

Intelligent monitoring functions can be added according to equipment and operator requirements.

SOC Display

Optional display allows operators to check remaining battery energy directly on the equipment.

Bluetooth Monitoring

Compatible smart BMS configurations can provide battery data through a mobile APP.

CAN / RS485

Communication interfaces can be configured when integration with the machine controller is required.

Counterweight and Stability Review

Important for Lithium Retrofit Projects

The original lead-acid battery may contribute to machine weight distribution. Original battery weight, equipment center of gravity and manufacturer stability requirements should therefore be reviewed before replacing it with a lighter lithium battery.

Typical Applications

DC Scissor Lifts Customized lithium power for electric lifting and driving systems	Aerial Work Platforms OEM battery integration for mobile elevating work equipment
Lead-Acid Retrofit Engineered LiFePO4 replacement for compatible existing equipment	Equipment OEM Projects Custom battery development for new access-equipment platforms

OEM and ODM Options

Battery voltage and capacity
Cell and BMS configuration
Continuous and peak current
Metal enclosure dimensions
Mounting holes and battery tray integration
Power connector and cable harness
CAN / RS485 communication
Bluetooth monitoring and SOC display
Matched LiFePO4 charger
Optional low-temperature heating
Logo, label and private-brand packaging

Information Required for Battery Development

Machine brand and model
Original battery voltage and capacity
Original battery quantity
Original battery dimensions and weight
Battery compartment dimensions
Drive motor power and current
Hydraulic pump power and peak current
Controller current limit
Original charger specification
Connector photos or drawings
Required communication and monitoring functions

Frequently Asked Questions

Is this one fixed battery specification?

No. This product is an OEM battery platform that can be configured according to the specific scissor lift or aerial work platform.

Can it replace a lead-acid battery?

Yes, after system voltage, current demand, battery compartment, connector, charger, original battery weight and machine stability requirements are confirmed.

Can the enclosure be customized?

Yes. Battery dimensions, mounting points, cable exits and connector locations can be developed according to the equipment installation space.

Does it support CAN or RS485?

CAN and RS485 communication can be integrated when the required machine protocol is confirmed.

Is Bluetooth monitoring available?

Yes. Bluetooth monitoring can be configured according to the selected smart BMS.

Can the original charger be reused?

Only when its output voltage and charging profile are compatible with the selected LiFePO4 battery. A matched lithium charger can be supplied if required.

What information is required for quotation?

Please provide the machine model, original battery data, battery compartment dimensions, original battery weight, drive motor and hydraulic pump information, connector details, charger specification and communication requirements.

Develop a Battery for Your Scissor Lift

Send Chalongfly your machine model, original battery specifications, battery compartment dimensions, drive motor and hydraulic pump requirements, connector information and charger data. Our engineering team will configure the LiFePO4 battery, BMS, enclosure, cable harness, charger and optional communication functions for your equipment.
