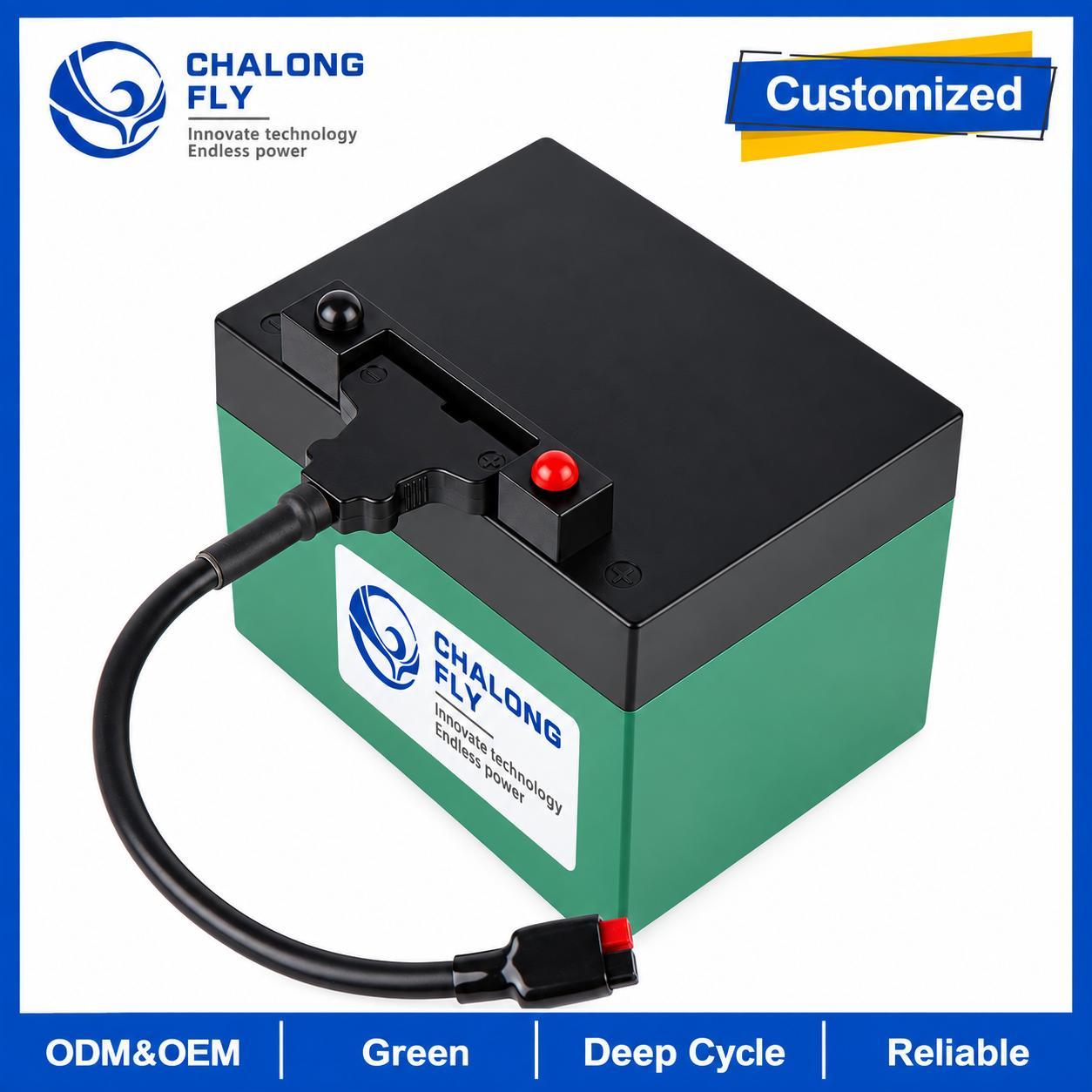

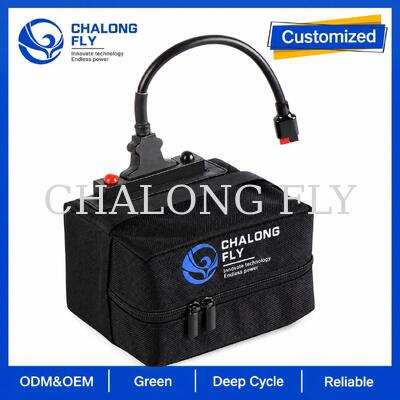

12.8V 18Ah 24Ah LiFePO4 Golf Trolley Battery with T-Bar Connector

Contact Now

12.8V 18Ah 24Ah LiFePO4 Golf Trolley Battery with T-Bar Connector

Minimum Order Quantity :	2 Packs	Price :	Negotiable
Packaging Details :	Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.	Delivery Time :	15–25 Working Days
Supply Ability :	2,000 Pieces per Month

Place of Origin:	Hunan,China	Brand Name:	Chalongfly
Certification:	UN38.3, MSDS	Model Number:	CLF-GT-12V18-24Ah

Product Description

Product Description

Lightweight Golf Trolley Power

12.8V 18Ah 24Ah LiFePO4 Golf Trolley Battery

Compact lithium battery with 230.4Wh or 307.2Wh energy, 25A continuous output and T-bar connector options for electric golf trolleys and motorized golf push carts.

Designed for Electric Golf Trolleys

The Chalongfly 12.8V LiFePO4 golf trolley battery series is developed for motorized golf trolleys and electric golf push carts that require compact dimensions, low battery weight and reliable motor power.

Two featured configurations are available: 18Ah with 230.4Wh nominal energy and 24Ah with 307.2Wh nominal energy.

T-bar connectors, matched chargers, carrying bags, cables and customized connector configurations are available according to the golf trolley model.

18Ah and 24Ah Specifications

Specification	18Ah	24Ah
Nominal Voltage	12.8V	12.8V
Rated Capacity	18Ah	24Ah
Nominal Energy	230.4Wh	307.2Wh
Maximum Charge Voltage	14.6V	14.6V
Charge Current	4A	4A
Continuous Discharge	25A	25A
Peak Discharge	50A	50A
Dimensions	168 × 128 × 75mm	168 × 128 × 101mm
Approx. Weight	2.3kg	2.9kg

18Ah or 24Ah?

Selection	18Ah	24Ah
Energy	230.4Wh	307.2Wh
Battery Weight	Approx. 2.3kg	Approx. 2.9kg
Primary Benefit	Compact and Lightweight	Additional Runtime Reserve
Typical Selection	Standard Golf Trolley Use	Longer or More Demanding Course Use

Lightweight Lead-Acid Upgrade

LiFePO4 technology provides a compact and lightweight alternative to compatible traditional lead-acid golf trolley batteries.

Lightweight Battery

The 18Ah reference battery weighs approximately 2.3kg and the 24Ah version approximately 2.9kg, helping reduce trolley carrying and handling weight.

Stable Voltage Output

LiFePO4 chemistry provides stable voltage delivery throughout normal discharge compared with traditional lead-acid batteries.

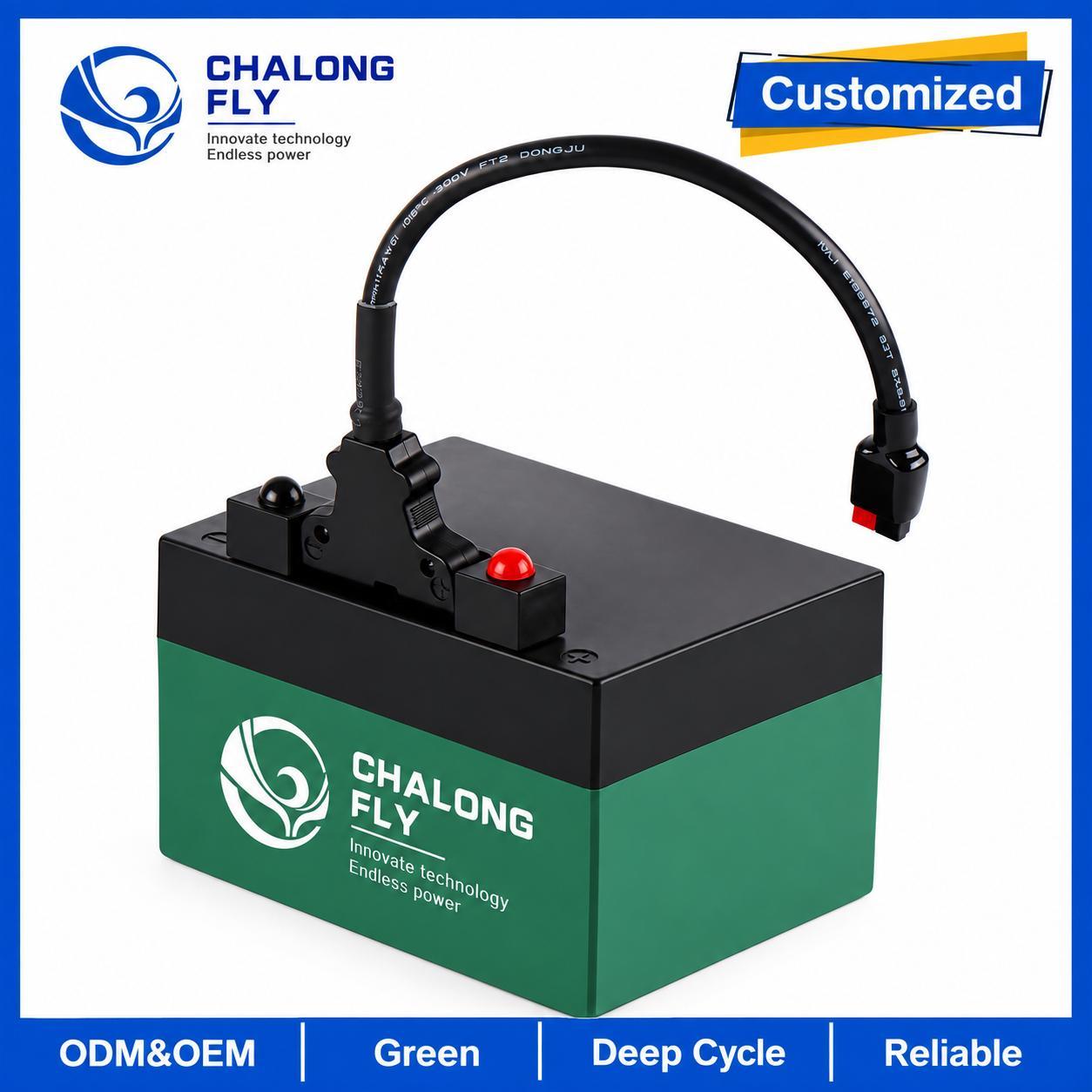

T-Bar Connector and Portable Design

Connector configuration is an important part of golf trolley battery replacement because different trolley models can use different power and charging interfaces.

T-Bar Connector	Available
Custom Connector	Available According to Golf Trolley Model

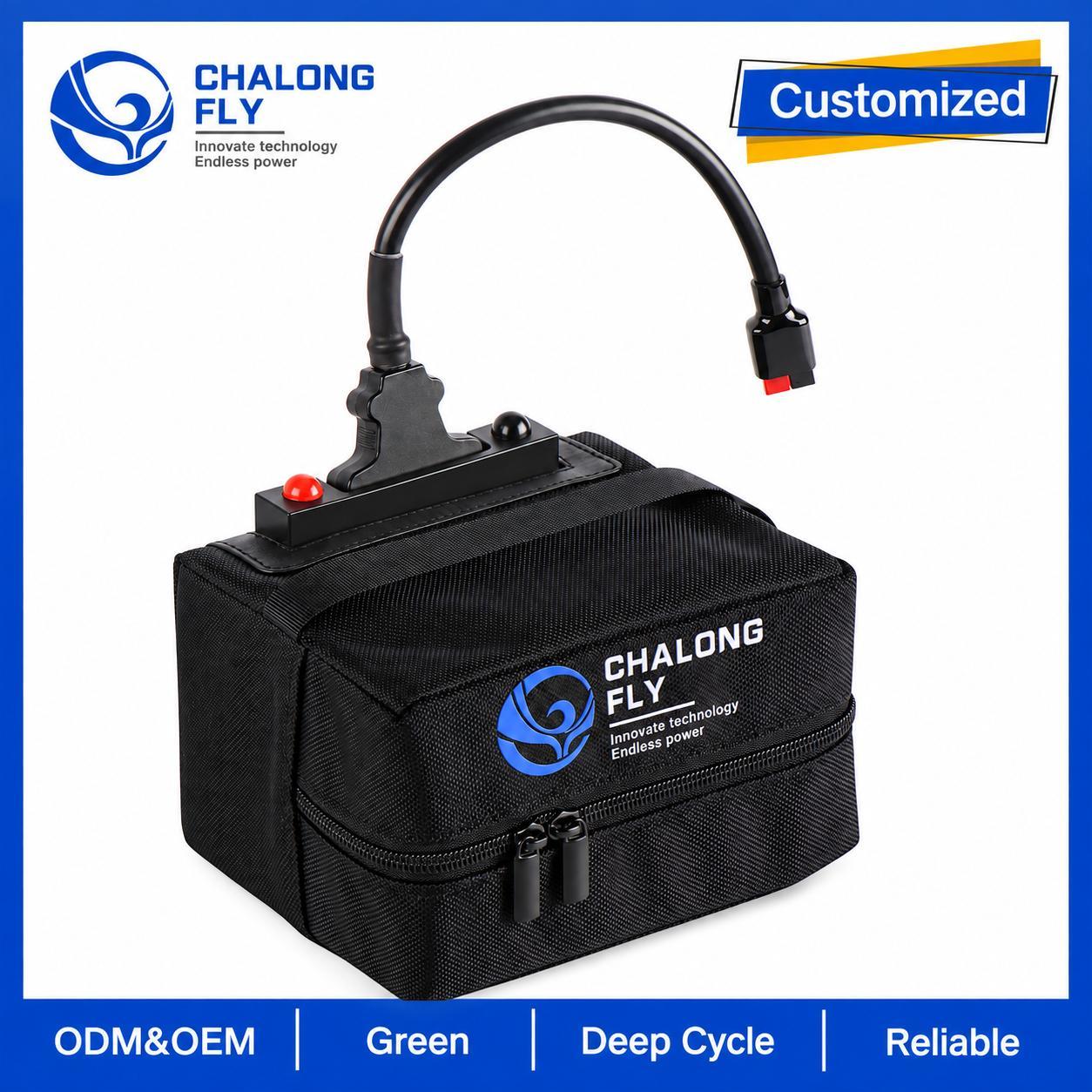

Carrying Bag	Available
Matched Charger	14.6V LiFePO4 Charger Available

Motor Current Compatibility

Both featured battery configurations provide 25A continuous discharge and up to 50A peak discharge.

Electrical Matching Required

Golf trolley motor rated current, controller current and starting current should be confirmed before replacing the original battery.

Typical Applications

Electric Golf Trolleys Compact lithium power for motorized golf equipment	Golf Push Carts Lightweight battery solution for compatible electric push carts
Lead-Acid Replacement Lithium upgrade for compatible 12V golf trolley battery systems	Golf Equipment OEM Customized battery, connector and charger configurations for trolley manufacturers

OEM and ODM Customization

18Ah or 24Ah capacity
T-bar or customized connector
Cable length and polarity
Battery enclosure configuration
BMS current configuration
Matched 14.6V charger
Carrying bag
Product label and model number
Logo and private-label packaging

Information Required for Replacement Matching

Golf trolley brand and model
Original battery voltage and capacity
Battery compartment dimensions
Connector type and polarity
Motor rated and maximum current
Existing charger specification
Estimated annual purchase quantity

Frequently Asked Questions

Is this battery for a golf cart or golf trolley?

It is designed primarily for electric golf trolleys and motorized golf push carts rather than full-size passenger golf carts.

What capacities are available?

The featured configurations are 12.8V 18Ah with 230.4Wh and 12.8V 24Ah with 307.2Wh of nominal energy.

Which version offers more runtime?

The 24Ah version provides approximately 33% more nominal energy than the 18Ah version. Actual runtime depends on motor consumption, trolley load, terrain and operating conditions.

Does it include a T-bar connector?

A T-bar connector is available. Connector type, polarity and cable length should be confirmed for the target golf trolley.

Can it replace a lead-acid golf trolley battery?

Yes, after confirming voltage, dimensions, connector, motor current and charger compatibility.

What information is required before ordering?

Please provide the golf trolley model, original battery specification, battery compartment dimensions, connector type, motor current and charger information.

Match the Right Golf Trolley Battery

Send Chalongfly your golf trolley model, original battery voltage and capacity, connector type, compartment dimensions and motor current. Our team will recommend the appropriate 18Ah or 24Ah LiFePO4 battery, charger and connector configuration.
