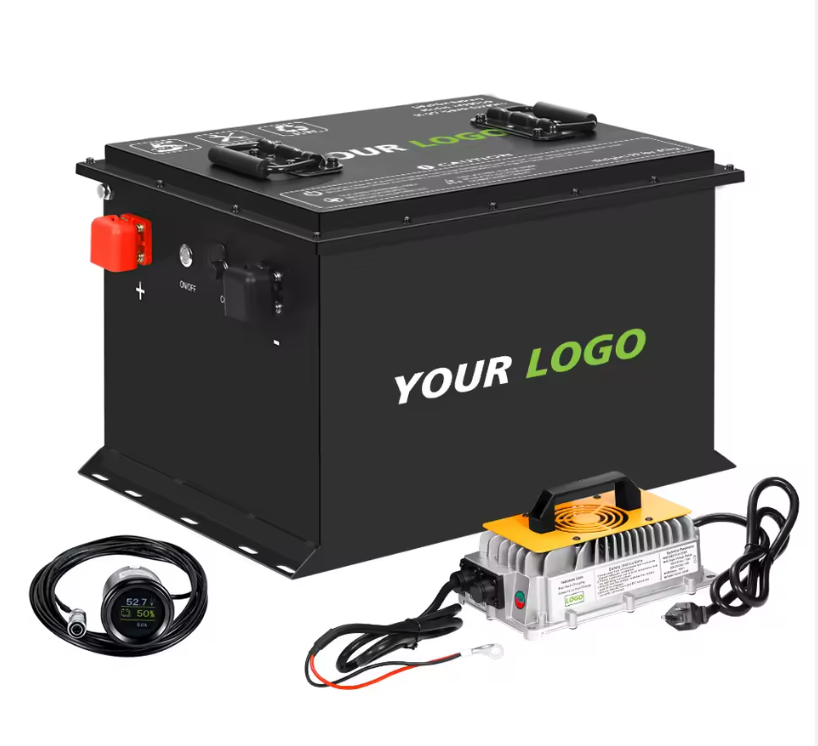

48V 30Ah Lithium Titanate Battery (LTO)
High-Power 48V 30Ah Lithium Titanate Battery with 20,000+ Cycle Life
The 48V 30Ah Lithium Titanate (LTO) Battery is a high-power rechargeable battery solution designed for applications requiring fast charging, high discharge capability, long cycle life, and reliable performance under extreme temperatures.
With a nominal voltage of 48V and a capacity of 30Ah, this battery provides 1.44kWh of energy in a compact and lightweight enclosure. The 20S1P battery configuration supports high-rate charging and discharging, with a 150A maximum charging current and 150A maximum discharge current.
Featuring advanced Lithium Titanate Oxide (LTO) chemistry, the battery can deliver an exceptional cycle life of up to 20,000 cycles, making it particularly suitable for demanding industrial and commercial applications where frequent charging and discharging are required.
Key Features
⚡ High-Power Performance
The battery supports up to 150A maximum charging and discharging current, with a continuous discharge current of 100A, providing strong power output for high-demand equipment.
🔋 Ultra-Long Cycle Life
With a rated cycle life of up to 20,000 cycles, the LTO battery is designed for applications with frequent charge/discharge cycles and long-term operation.
🚀 Fast Charging Capability
The standard charging current is 90A, while the maximum charging current can reach 150A, enabling rapid energy replenishment and reducing equipment downtime.
🌡️ Wide Operating Temperature Range
Designed to operate in temperatures from -40°C to 60°C, the battery is suitable for demanding environments and applications exposed to extreme temperatures.
📦 Compact & Lightweight Design
The battery weighs ≤20 kg and measures approximately 333 × 303 × 162 mm, offering a high-power energy solution within a compact enclosure.
🔌 RS485 Communication
The integrated communication interface supports RS485, allowing the battery to communicate with external equipment and battery management systems for monitoring and system integration.
Technical Specifications
| Parameter |
Specification |
| Battery Chemistry |
Lithium Titanate Oxide (LTO) |
| Nominal Voltage |
48V |
| Battery Capacity |
30Ah |
| Battery Energy |
1,440Wh |
| Battery Configuration |
20S1P |
| Weight |
≤20 kg |
| Dimensions (W × D × H) |
333 × 303 × 162 mm ±1 mm |
| Enclosure Material |
PVC |
| Standard Charging Current |
90A |
| Maximum Charging Current |
150A |
| Continuous Discharge Current |
100A |
| Maximum Discharge Current |
150A |
| Charging Cut-off Voltage |
56V |
| Discharge Cut-off Voltage |
30V |
| Operating Temperature |
-40°C to 60°C |
| Storage Temperature |
-30°C to 40°C |
| Recommended Long-Term Storage Temperature |
15°C to 25°C |
| Cycle Life |
≥20,000 cycles |
| Cycle Life Test Condition |
25°C, 0.5C charge / 1C discharge, ≥80% capacity retention |
| Storage Humidity |
RH <50% |
| Communication Interface |
RS485 |
Why Choose Lithium Titanate (LTO) Battery Technology?
Lithium Titanate batteries are particularly suitable for applications that require high power, rapid charging, frequent cycling, and long service life.
Compared with conventional lithium battery chemistries, LTO technology offers several important advantages:
- Extremely long cycle life
- Excellent high-rate charging performance
- High discharge power
- Excellent low-temperature performance
- Wide operating temperature range
- Excellent performance for frequent charge/discharge applications
- Reduced battery replacement frequency over long-term operation
These characteristics make the 48V 30Ah LTO battery an ideal solution for applications where battery reliability and operating availability are more important than simply maximizing energy density.
Typical Applications
The 48V 30Ah LTO battery can be customized for a wide range of high-power and industrial applications, including:
- Electric vehicles and utility vehicles
- AGVs and mobile robots
- Industrial equipment
- Automated material handling equipment
- Electric machinery
- UPS and backup power systems
- Telecommunication backup power
- Energy storage systems
- Fast-charging applications
- High-frequency charge/discharge equipment
Custom LTO Battery Pack Solutions
As a professional lithium battery pack manufacturer, we provide custom LTO battery solutions according to your voltage, capacity, current, dimensions, communication, and installation requirements.
Customization options include:
- Battery voltage and capacity
- Battery dimensions and enclosure
- Charging and discharging current
- BMS configuration
- RS485/CAN communication
- Connectors and terminals
- Wiring harness
- Mounting structure
- OEM/ODM design
Whether you need a prototype, small-batch customized battery pack, or mass-production solution, our engineering team can develop the battery according to your equipment and application requirements.
Contact us today to discuss your 48V LTO battery requirements and get a customized solution.
