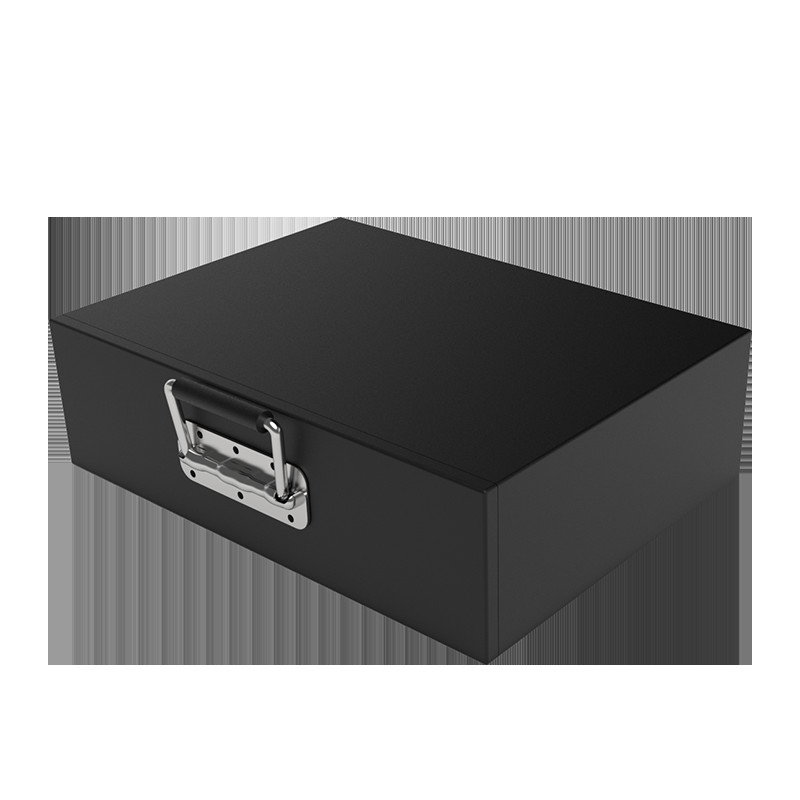

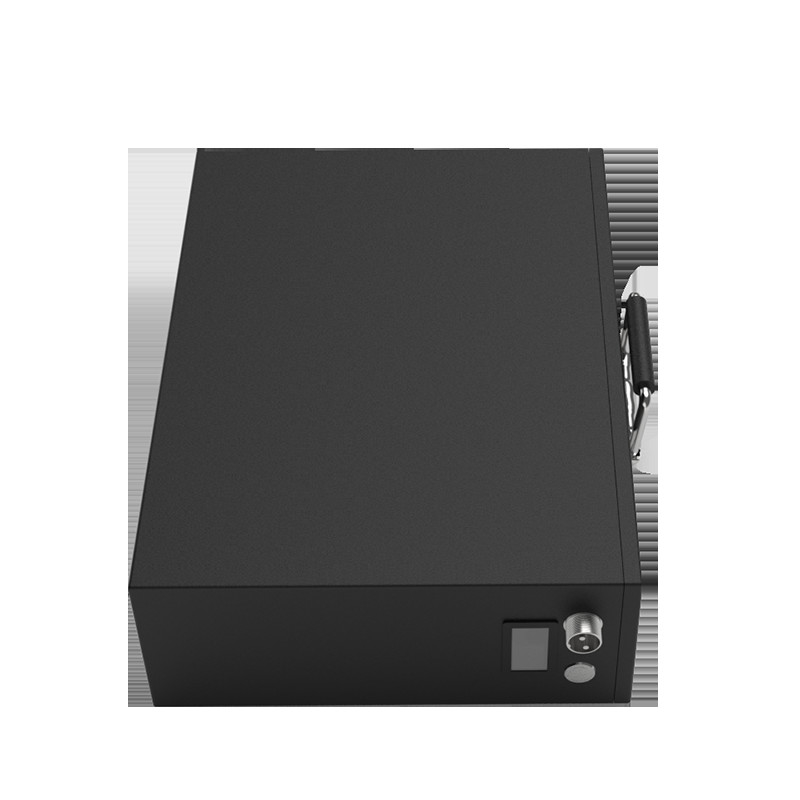

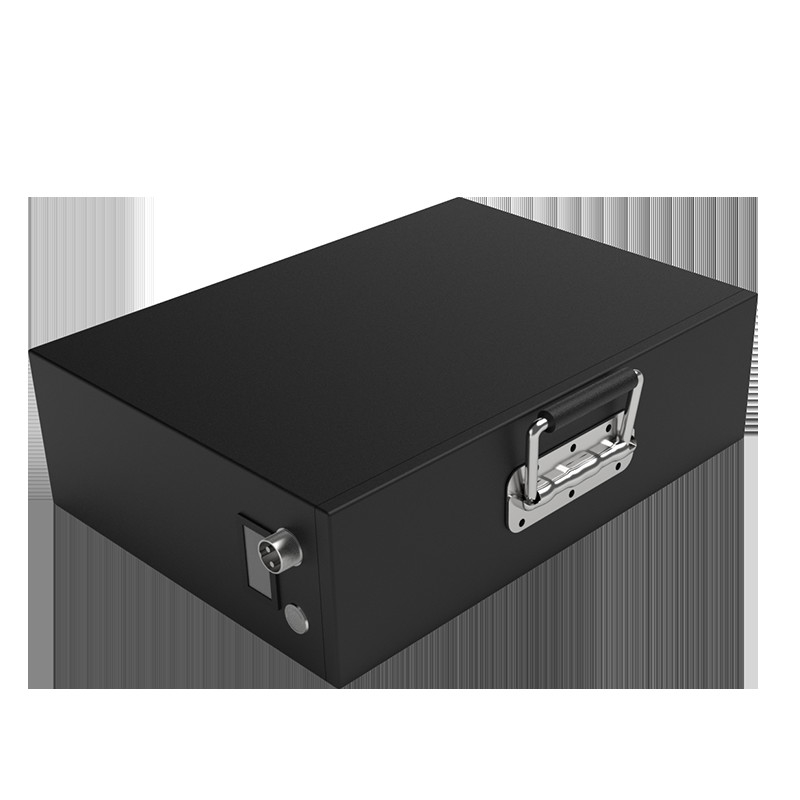

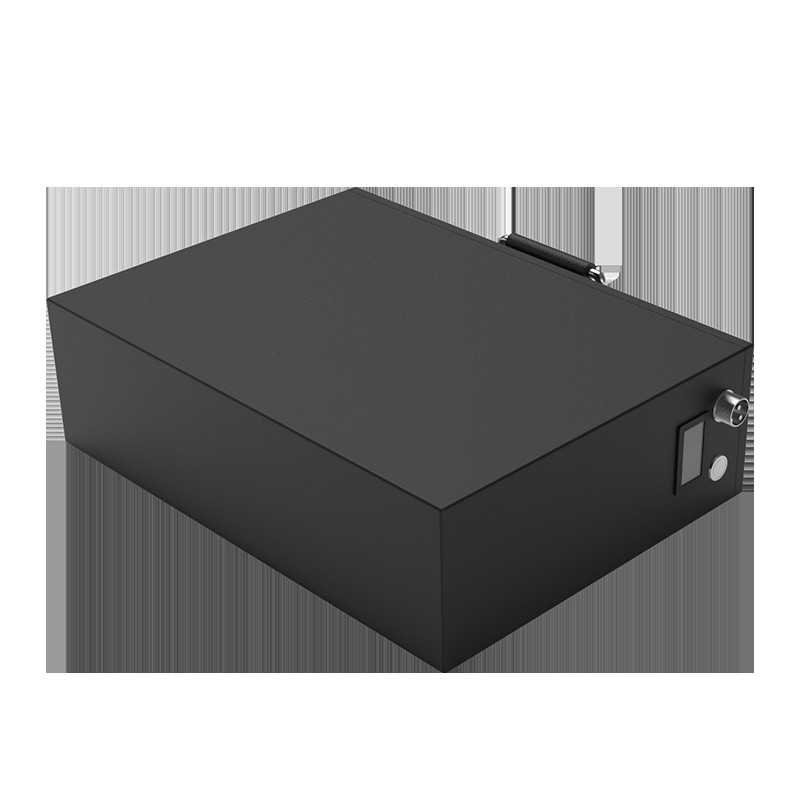

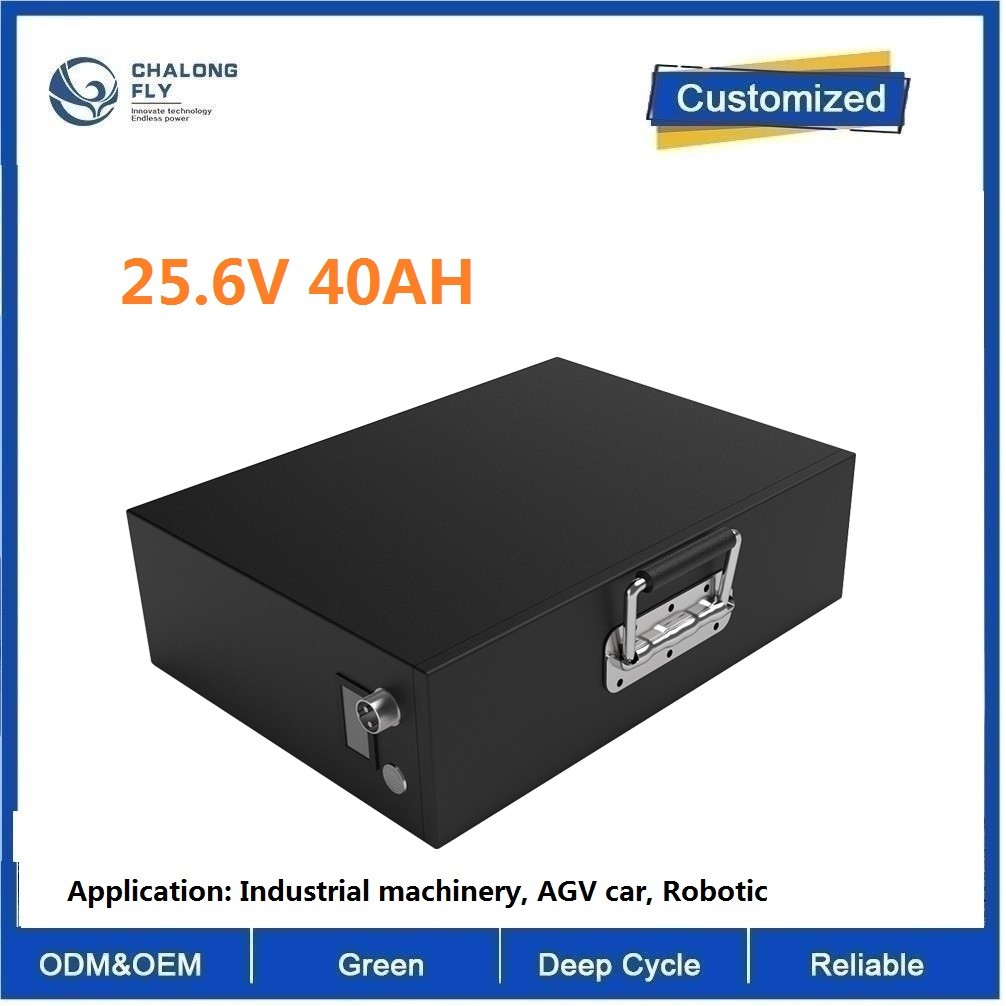

CLF OEM ODM 25.V 40AH LiFePO4 Lithium Iron Battery Pack For Robotics Industry Machines Medical machines

Product Description

Lithium Iron Phosphate Battery Packs for Robotics

Parameter

Cell type: 18650/3.7V/2.5Ah

Battery specification: 18650/7S16P/25.9V/40Ah

Nominal voltage: 25.9V

Nominal capacity: 40Ah

Charging voltage: 29.4V

Charging current: ≤10A

Discharge current: 10A

Instant discharge current: 35A

Discharge cut-off voltage: 19.6V

Finished internal resistance: ≤200mΩ

Battery weight: 6Kg

Product size: 260×170×90mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 50℃

Storage temperature: -20 ~ 40℃

Temperature protection: 65℃±5℃

Battery case: cold-rolled sheet metal

Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection

Application field: Robot, AGV

Features

Shockproof: Through the cold-rolled sheet metal shell filling shockproof structure design, to achieve high safety, high reliability requirements

High current: High current output, maximum 3C output

Data communication management: The use of software management chips, accurate data transmission, accurate temperature control, to minimize security risks

The battery pack is safe and has a temperature probe to automatically start protection when the temperature exceeds

High cycle life of the battery pack, in line with the value concept of low carbon, energy saving and environmental protection

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
