CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : CLF
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 | Packaging Details : | carton box+tray |
|---|---|---|---|
| Delivery Time : | 30days | Payment Terms : | L/C, T/T |
| Supply Ability : | 5000sets/month |
| Certification: | UN38.3,MSDS | Model Number: | CLF-R4322 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Hunan, China | Brand Name: | CLF Or OEM |
|---|---|---|---|
| Brand: | CLF Or OEM | Battery Type: | LiFePO4/NMC Battery |
| Battery Size: | 24v 48v 100Ah-300Ah | Rated Voltage: | 51.2V |
| Capacity: | 50AH | Combination: | 16S1P |
| Working Voltage: | 40V-58.4V | Charge Current: | 20A |
| Continouse Discharge Current: | 100A | Peak Discharge Current: | 300A |
| Weight: | 25kg | Size: | 300*260*4240mm |
| Application: | Electric Forklift, AGV, Ice Resurfacer, Scooter Etc. | Warranty: | 2 Years |
| High Light: | 50Ah Lithium Battery Packs,RGV Lithium Battery Packs,200Ah Lithium Battery Packs |
||
Product Description

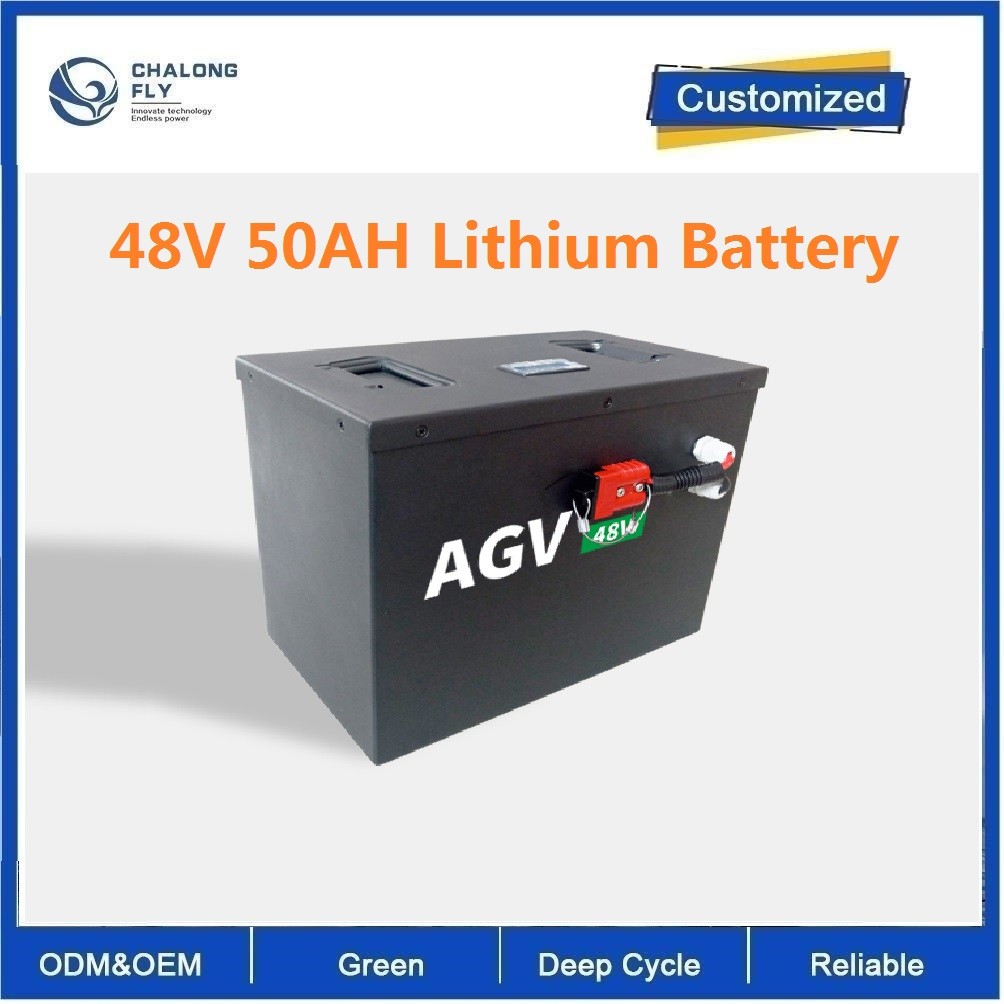

CLF OEM ODM Electric Forklift AGV RGV RGV Power Car Lifepo4 EV Lithium Battery Packs OEM 24V 48V 100Ah 200Ah 300Ah 50Ah
AGV battery advantages:
1. Stable communication protocol solution. Including RS485, RS232, CAN, TTL232, etc.;
2. Related power supply solutions can be customized.
Such as pre-charging function, battery data LCD display, small power switch button that can control output, mutual communication between charger and lithium battery, strong load signal interference shielding measures, lithium battery charging status alarm and fault alarm, etc.;
3. The quality is more stable. Adopt mature BMS management system and mature assembly process;
4. The product is safer and has a longer cycle life. It uses lithium iron phosphate batteries;
5. Lighter weight. It uses soft-packed batteries instead of the commonly used aluminum-shell batteries;
6. Personalized customization of high-quality sheet metal shells.
| Brand | CLF | Product | AGV Battery |
| Model | 48V 50AH | Cell | LiFePO4 3.2V-50AH |
| Capacity | 50AH | Combination | 16S1P |
| Voltage | 51.2V | Charge current | 20A |
| Working voltage | 40V-58.4V | Discharge current | Continous:120A Peak:200A |
| Storage voltage | 49.6V-51.2V | Cycle life | 3000times |
| Size | 198*398*464mm | Working temperature |
Charge:0~45℃ |
| Discharge:-10~60℃ | |||
| Weight | about 48kg | Storage temperature |
-20~35℃ |
| Shell | Stainless steel with handle | Warranty | 2years |
| Wire & Plug | Charging head: Anderson (50A); Discharging head: Anderson (150A) | ||
| Functions | BMS with low-voltage alarm, power display, and protection functions such as short circuit, overcharge, over-discharge, and over-current. | ||
| Advantage | The BMS management system solution is stable, with RS-485 protocol, and a small power supply starts to control the battery output, replacing the air switch. | ||
| Application | AGV cars, logistics vehicles, rail cars, etc. | ||
OEM Battery parameters
Product Model
| Model | Capacity | Battery type | Dimension(mm) | Weight | Shell | ||
| Thickness | Width | Lenghth | (±1kg) | ||||
| 48V10Ah | 10Ah | NCM | 70 | 110 | 269 | 2.8kg | NO |
| 70 | 85 | 294 | |||||
| 48V20Ah | 20Ah | NCM | 138 | 110 | 269 | 5.5kg | NO |
| 138 | 85 | 294 | |||||
| 48V30Ah | 30Ah | NCM | 182 | 397 | 170 | 11.5kg | NO |
| 182 | 223 | 320 | |||||
| 48V40Ah | 40Ah | LiFePO4 | 200 | 548 | 195 | 28kg | Stainless steel |
| 200 | 324 | 334 | |||||
| 48V50Ah | 50Ah | LiFePO4 | 298 | 468 | 176 | 31kg | Stainless steel |
| 298 | 284 | 296 | |||||
| 48V60Ah | 60Ah | LiFePO4 | 247 | 612 | 195 | 35kg | Stainless steel |
| 247 | 356 | 334 | |||||
| 48V70Ah | 70Ah | LiFePO4 | 158 | 900 | 234 | 43kg | Stainless steel |
| 158 | 500 | 412 | |||||
| 48V85Ah | 85Ah | LiFePO4 | 158 | 900 | 234 | 44kg | Stainless steel |
| 158 | 500 | 412 | |||||
| 48V92Ah | 92Ah | LiFePO4 | 233 | 596 | 234 | 45kg | Stainless steel |
| 233 | 348 | 412 | |||||
| 48V100Ah | 100Ah | LiFePO4 | 198 | 676 | 260 | 48kg | Stainless steel |
| 198 | 388 | 464 | |||||
| 48V120Ah | 120Ah | LiFePO4 | 196 | 900 | 234 | 58kg | Stainless steel |
| 196 | 500 | 412 | |||||
| 48V140Ah | 140Ah | LiFePO4 | 198 | 868 | 260 | 64kg | Stainless steel |
| 198 | 484 | 464 | |||||
| 48V150Ah | 150Ah | LiFePO4 | 158 | 500 | 408 | 83kg | Stainless steel |
| 158 | 900 | 764 | |||||
| 48V175Ah | 175Ah | LiFePO4 | 231 | 996 | 234 | 77kg | Stainless steel |
| 231 | 548 | 412 | |||||
| 48V200Ah | 200Ah | LiFePO4 | 196 | 396 | 756 | 95kg | Stainless steel |
| 196 | 692 | 412 | |||||
| 48V240Ah | 240Ah | LiFePO4 | 230 | 396 | 756 | 100kg | Stainless steel |
| 230 | 692 | 412 | |||||
Remark:
1. An ultra-large-capacity lithium battery pack that can be customized to store up to 500 kilowatt hours of electricity;
2. Discharge current: 10A-400A, other current values can also be customized;
3. The handle for weighing less than 10kg is directly above. Handles above 10kg are in the width direction;
4. It can be equipped with RS485 or RS232 or CAN communication protocol, which shall be subject to the actual situation;
5. The above are only some models. If you have other sizes and requirements, please consult and ask for relevant plans.
Production Details
From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
CLF Customized Electric Forklift AGV Lifepo4 EV Lithium Iron Battery Packs OEM 24V 48V 100Ah 200Ah 300Ah 50Ah For AGV
