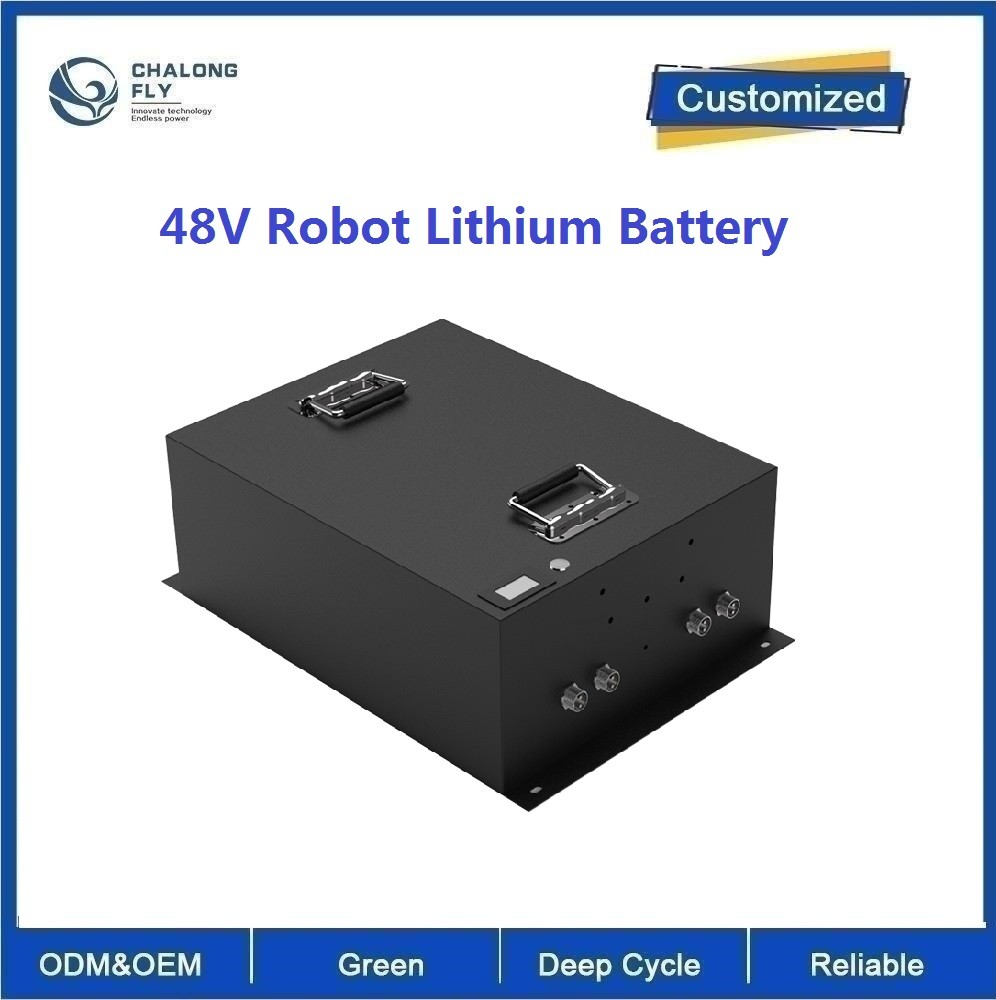

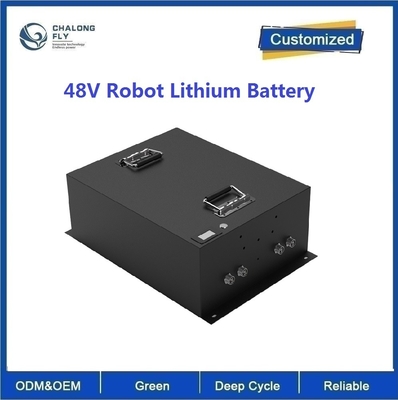

CLF OEM LiFePO4 Lithium Iron Battery Pack For Robots Energy Storage Truck EV Golf Carts Vehicle Motorcycle

Product Description

CLF OEM LiFePO4 Lithium Iron Battery Pack For Robots Energy Storage Truck EV Golf Carts CityDeliveryVehicle Motorcycle

Lithium Iron Phosphate Battery Packs for Powered Clean Photovoltaic Robot

Parameter

Battery cell model: LFP100-3.2V

Battery specifications: LFP100-16S1P-100Ah-48V

Product size: 470×430×277mm (Max)

Nominal voltage: 51.2V

Nominal capacity: 100Ah

Finished product internal resistance: ≤150mΩ

Charging voltage: 58.4V

Charging current: ≤47A

Discharge current: ≤100A

Discharge cut-off voltage: 40V

Battery weight: 50kg

Charging temperature: 0～45℃

Discharge temperature: -20～60℃

Storage temperature: -20～35℃

Battery casing: aluminum alloy casing

Lithium battery protection: short circuit protection, overcharge protection, over-discharge protection, over-temperature protection, over-current protection, ESD protection, etc.

Application areas: energy storage, fire protection, robots, logistics vehicles, etc.

Features

Aluminum alloy shell increases battery reliability and firmness.

Equipped with positioning holes and portable handles, simple, reliable and easy to install.

Output end: adopts aviation plug output mode to increase conductive reliability;

Battery protection management: Using a dedicated lithium battery protection chip, it has high stability, high-precision monitoring and precise control.

With temperature protection and other functions. Eliminate safety hazards to the greatest extent

Data communication management: Using RS485 communication for precise data transmission, precise temperature control, and real-time battery status monitoring and control to minimize safety hazards

Can be equipped with battery switch to control discharge output

BMS communication uses optocoupler isolation. The product supports RS485 bus for customer-selectable communication. The communication baud rate is 250K.

The battery pack is safe, has good discharge performance and has a long cycle life;

The battery pack has a high cycle life and is in line with the value concepts of low carbon, energy saving and environmental protection;

Production Details

From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
