CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : CLF
Phone Number : +86 18975107916
WhatsApp : +8618975107916
Detail Information |
|||
Place Of Origin: | Hunan, China | Brand Name: | CLF Or OEM |
---|---|---|---|
Brand: | CLF Or OEM | Battery Type: | LiFePO4/NMC Battery |
Rated Voltage: | 51.2V | Capacity: | 50AH |
Combination: | 4S10P | Working Voltage: | 40V-58.4V |
Charge Current: | 25A | Discharge Current: | 50A |
Discharge Pulse Current: | 70A | Weight: | 28kg |
Size: | 230*310*410mm | Application: | Golf Cart, Robot, UPS, Lawn Mower, Etc |
Warranty: | 2years | ||
High Light: | 48V 50AH Lithium Iron Battery,CLF Lithium Iron Battery,OEM UPS Power Battery Pack |
Product Description

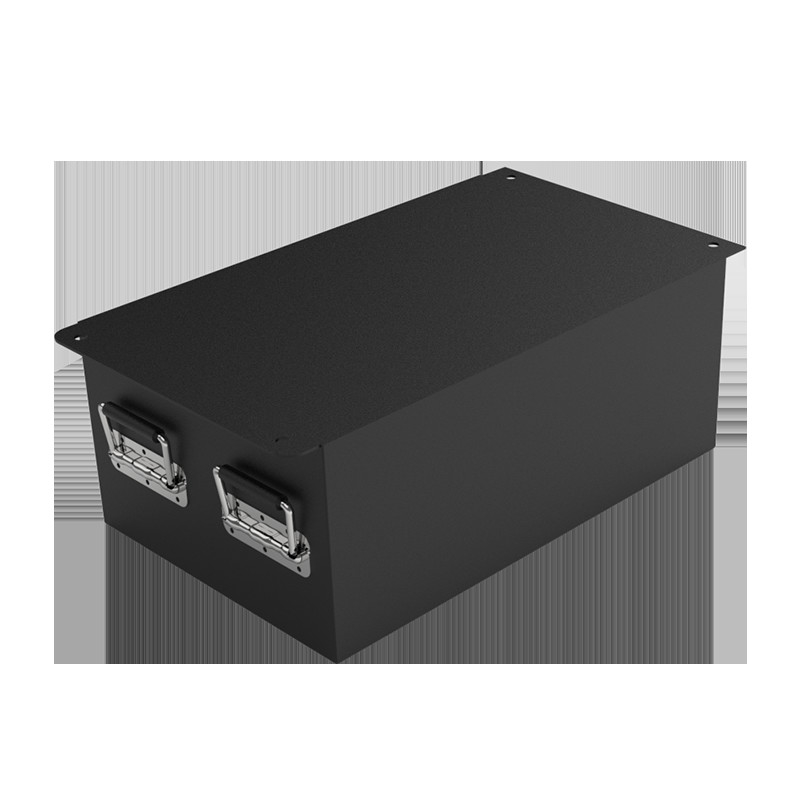

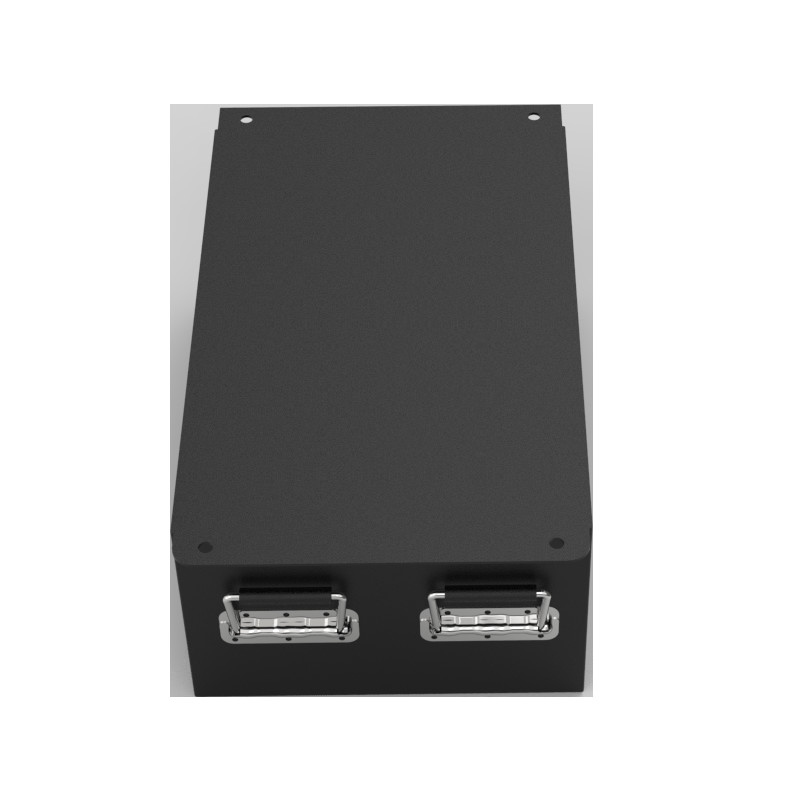

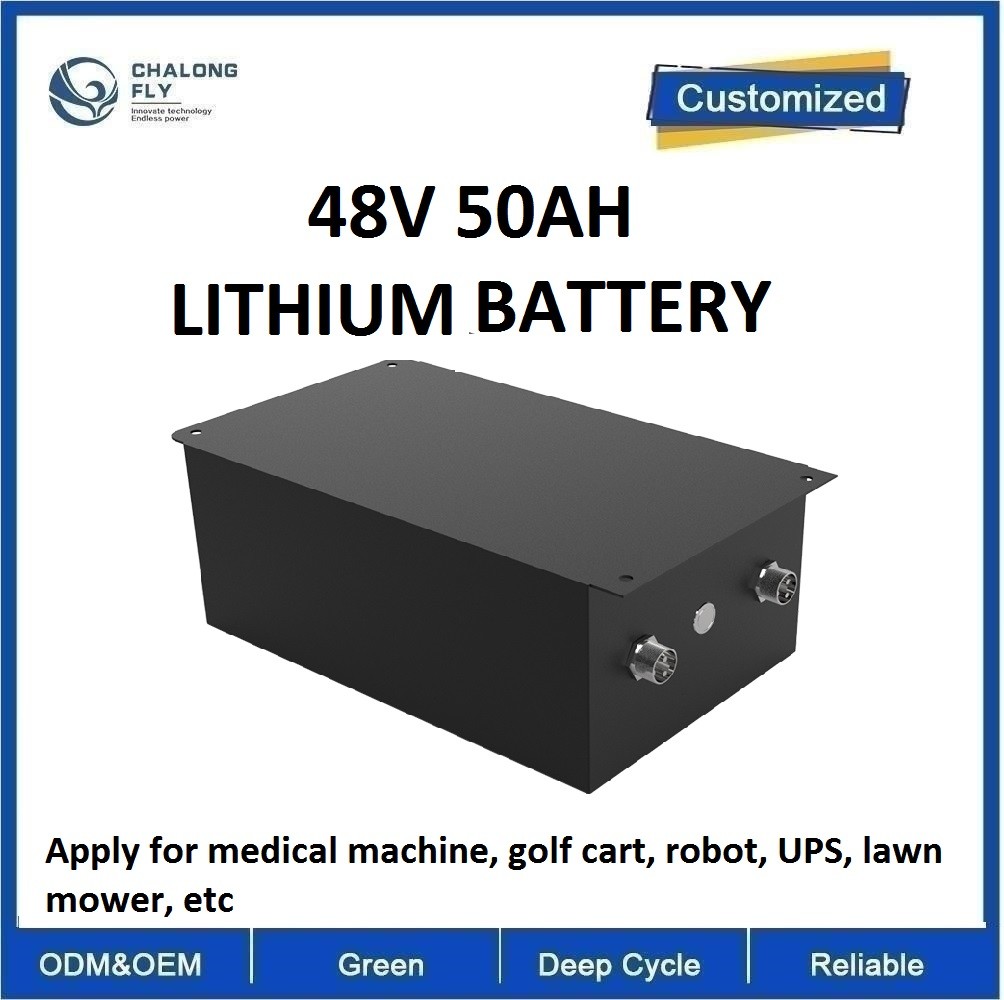

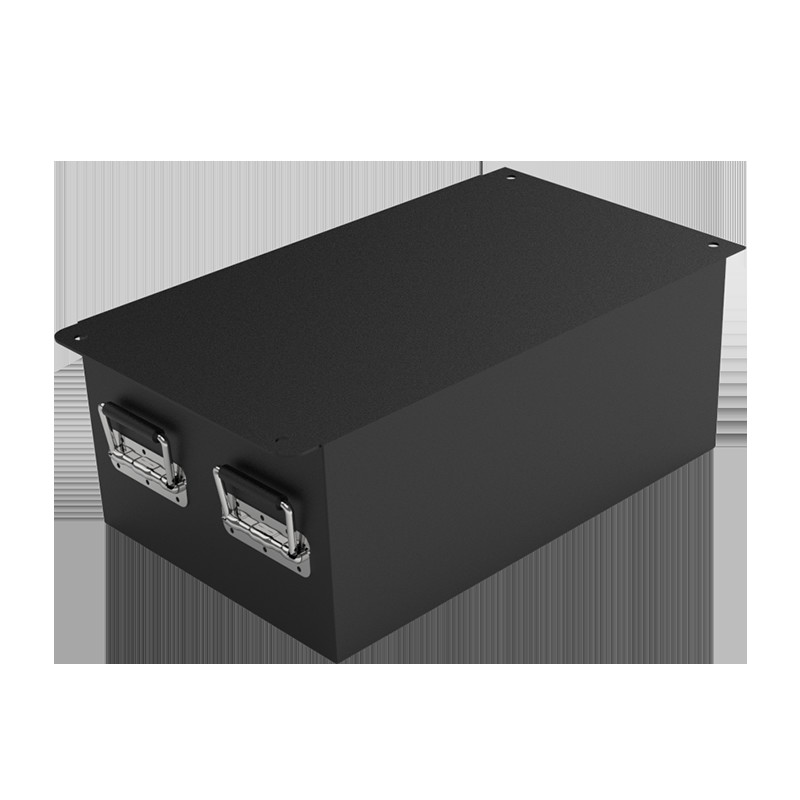

Lithium Iron Phosphate Battery for Medical Devices
Battery cell model: LF105/52Ah/3.2V
Battery specifications: LF105-16S1P/50Ah/51.2V
Nominal voltage: 51.2V
Nominal capacity: 50.0Ah
Charging voltage: 58.4V
Charging current: ≤25.0A
Discharge current: 50.0A
Instantaneous discharge current: 70A
Discharge cut-off voltage: 40.0V
Finished product internal resistance: ≤100mΩ
Battery weight: ≤28.0kg
Product size: 230*310*410mm
Charging temperature: 0~55℃
Discharge temperature: -20~55℃
Storage temperature: -20~45℃
Battery casing: sheet metal casing
Intelligent lithium battery protection: power management (RS485, CAN protocol), short circuit protection, overcharge protection, over-discharge protection, over-current protection, over-temperature protection, etc.
Application areas: golf carts, robots, UPS, lawn mowers, etc.
Features
Low self-consumption;
The battery has its own temperature protection.
The battery pack is safe and has a long cycle life;
With 485 communication
The battery pack has a high cycle life and is in line with the value concepts of low carbon, energy saving and environmental protection;
Production Details
From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
