Multifunctional Energy Storage Battery 300W 12.8V 52Ah For Electronic Devices

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE Model Number: CLF-0063

Detail Information

Capacity: 660Wh /16.8V 52Ah Dimensions: 335x260x220mm
Certificate: CE,UN38.3,FCC,RoHS OEM/ODM: Acceptable,warmly Welcomed
Battery Type: Ternary Lithium Battery Weight: 6KG
Cycles: ≥1000 Times Discharging Temperature: -4-140°F (-20-60°C)
High Light:

Multifunctional Energy Storage Battery

,

300W Energy Storage Battery

Product Description

300W 12.8V 52Ah Outdoor Portable Multifunctional Energy Storage Battery For Electronic Devices

No. TH03
Net Weight 6Kg
Dimensions 335x260x220mm
Capacity 660Wh /16.8V 52Ah
Certification CE UN38.3 FCC RoHS
AC output 300W(Peak 350W),220Vac 50Hz
5V USB Output 5V DC,2.4A,12Wmax,per port
QC 3.0 fast charging 5V 3A DC, 9V 2A DC, 12V 1.5A DC,18W
Type-C Output /
DC 12V output(x2) 60W, 12V DC, 10A max (no short circuit protection)
Car Power output(x1) 94.5W, 13.2V DC, 10A max
AC charging input voltage 220-240Vac 50Hz
AC Charging Input Power

TH03 Charging Power 80W max.

12.8V DC 5A max

Cell type Ternary lithium battery
Cell Capacity 12.8V 52AH
Discharge temperature -4-140°F(-20-60℃)
Charging temperature 32-122°F(0-50℃)
Cycle life ≥1500 times







Multifunctional Energy Storage Battery 300W 12.8V 52Ah For Electronic Devices 0

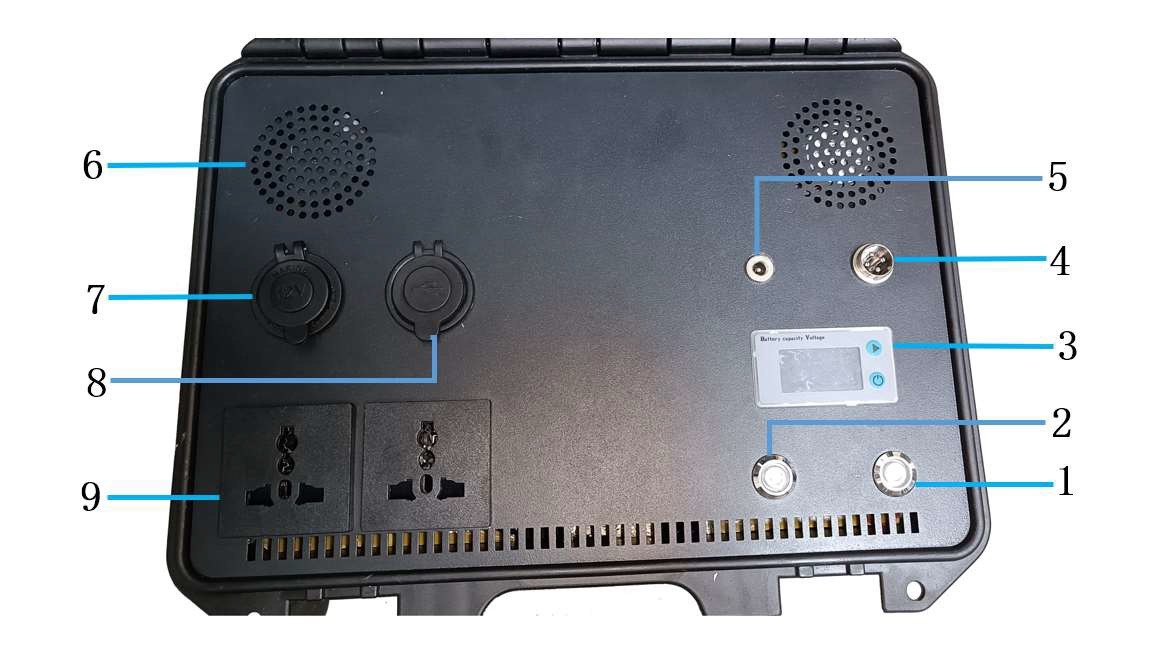

1. AC power switch

The AC power button controls the AC output of TH03. When the power switch is pressed, the switch lights up and the inverter has AC output.


2. DC Power Switch

The DC power button controls the DC output of the TH03. When the power switch is pressed, the switch lamp turns on and the display turns on, indicating the voltage level.


3. LCD Display

The display shows the amount of power carried by the product and whether the DC output is on. You can turn it on or off by pressing and holding the DC ON/OFF button.

4. Charging port

TH03 requires a professional charger for charging, the charger output voltage specification is DC 14.6V~5A max.

5.DC-12V Output Port
Devices charged through the DC-12V port charge DC-12V devices. For example, DC12V LED lamp, DC12V refrigerator, device can be charged at max.The device can be charged at a maximum of DC12V 5A.


6. Fans
When the temperature of the battery pack and inverter is too high, the fan will start automatically. The internal heat of the product is taken away to ensure normal operation of the product.


7. Quick Charge QC 3.0 output port

Charges a variety of devices such as Apple phones, tablets, speakers or any device that needs to be charged through a USB port. Devices that support fast charging
Can be charged at a maximum speed of 18W. If your device does not support fast charging, the device will charge at normal speed.


8. Cigarette lighter connector
Maximum support DC12V10A car charger









Product Packaging

To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

1) Inner box - Carton - Pallet- Container
2) Packaging also can be made by customers requirements
Certifications
Multifunctional Energy Storage Battery 300W 12.8V 52Ah For Electronic Devices 1



Multifunctional Energy Storage Battery 300W 12.8V 52Ah For Electronic Devices 2



Multifunctional Energy Storage Battery 300W 12.8V 52Ah For Electronic Devices 3



Square LiFePO4 3.2V32AH Battery Pack Perfect Square Deep Cycle Lithium Battery for Boat RV Golf Cart Solar System etc 10



FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.


Contact us for more informations!
