Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLTF
Certification: CE Model Number: CLF-0013

Detail Information

Nominal Capacity: 200Ah Nominal Voltage: 24V
Operation Temperature Range: 0℃-45℃ Cycle Life: 1500 Times
Size: 525mm*385mm*152.5mm Weight: 49KG
Custom: Accept Usage: Electric Vehicles, Electric Wheelchairs, Start-up Power Supplies, Energy Storage Lighting, Power
High Light:

Sightseeing Cars 24V Lithium Battery Pack

,

CE 24V Lithium Battery Pack

,

24V 200Ah Lithium Battery

Product Description

24V 200Ah Through-Wall Terminal Power Lithium Battery Pack For EV Golf Carts Sightseeing Cars

Model CLF-0013
Rated Capacity 200Ah
Nominal Voltage 24V
Serialization 2P8S
Internal resistance ≤120mΩ
Discharge cutoff voltage 20V
Charging protection voltage 28.8V
Max. Charging voltage 29.2V
Maximum discharge current 80A
Maximum charge current 50A
Peak current 300±3A 2S

Rated discharge

Current

200A
Charging method CC/CV

Cycle

(+25℃ 0.2C 100%DOD)

1500 times
Operating Temperature Range Charging: 0~45℃
Discharge:-20~55
Storage temperature

-10~35℃

(60-80% SOC storage,

need to recharge every 2 months)

Dimension parameters
L*W*H

525mm*385mm*152.5mm

Weight 49KGS
Packaging and Delivery
Packaging details Standard carton with wooden package

Internal Structure

    Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 0

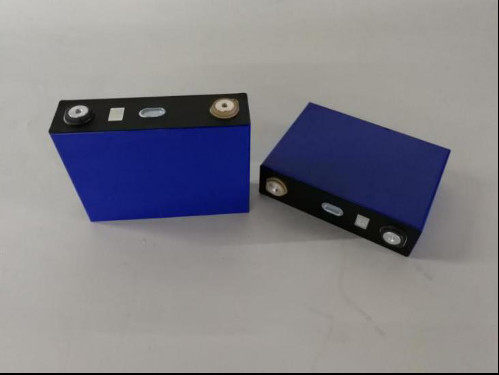

Battery: 3.2V 100AH


Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 1

Cell discharge performance:
Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 2





Model: 24V/200AH



Specification L x W x H: 525mm*385mm*152.5mm



Parameters: working temperature -20°C ~ 60°C, lithium iron phosphate, continuous working current 200A, 50A charging, instantaneous maximum current 300A (2S), through-wall terminal, charging upper limit 29.2V, discharge cut-off 20V, cold-rolled sheet spray, Weight 49KG



Applications: electric cars, golf carts, sightseeing cars, sweepers, power







Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 3

Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 4

Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 5

Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 6



Through Wall Terminal Power 200Ah 24V Lithium Battery Pack For Sightseeing Cars 7
