CLF OEM ODM Golf Cart Forklift Motorcycle Lifepo4 Lithium Battery 36V 48V 72V BMS CAN RS485 6000cycles Lead Acid
Contact Person : CLF
Phone Number : +86 18975107916
WhatsApp : +8618975107916
Minimum Order Quantity : | 10 | Packaging Details : | carton box+tray |
---|---|---|---|
Delivery Time : | 30days | Payment Terms : | L/C, T/T |
Supply Ability : | 5000sets/month |
Certification: | UN38.3,MSDS | Model Number: | CLF-R4412 |
---|
Detail Information |
|||
Place Of Origin: | Hunan, China | Brand Name: | CLF Or OEM |
---|---|---|---|
Brand: | CLF Or OEM | Battery Type: | LiFePO4/NMC Battery |
Battery Size: | 24v | Rated Voltage: | 25.6 |
Capacity: | 20AH | Combination: | 8S5P |
Working Voltage: | 20V-29.2V | Charge Current: | 5A |
Discharge Current: | 10A | Max Continuous Discharge: | 50A 10s |
Weight: | 1.7kg | Size: | 280*130*80mm |
Application: | Electric Mower, Electric Tool Etc | Warranty: | 2years |
High Light: | OEM Lithium Iron Battery Packs,25.6V Lithium Iron Battery Packs,ODM CLF Lithium Iron Battery |
Product Description

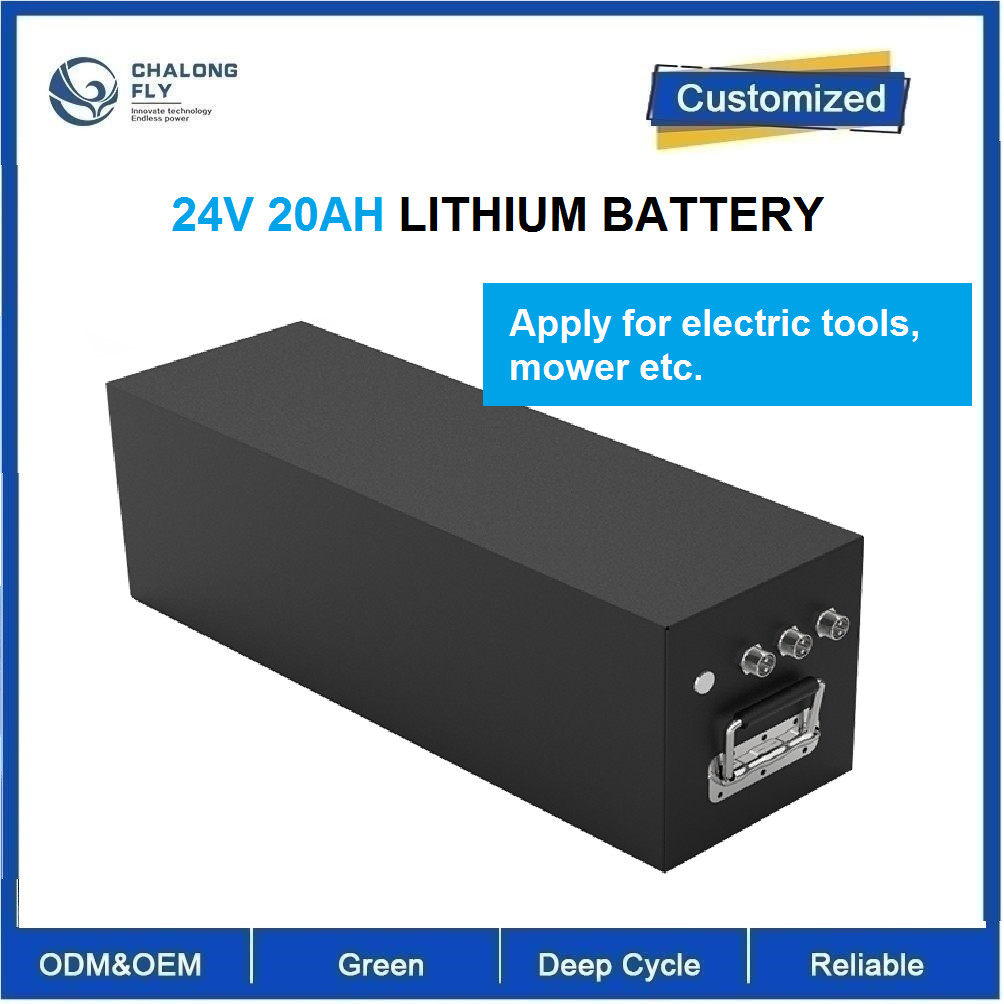

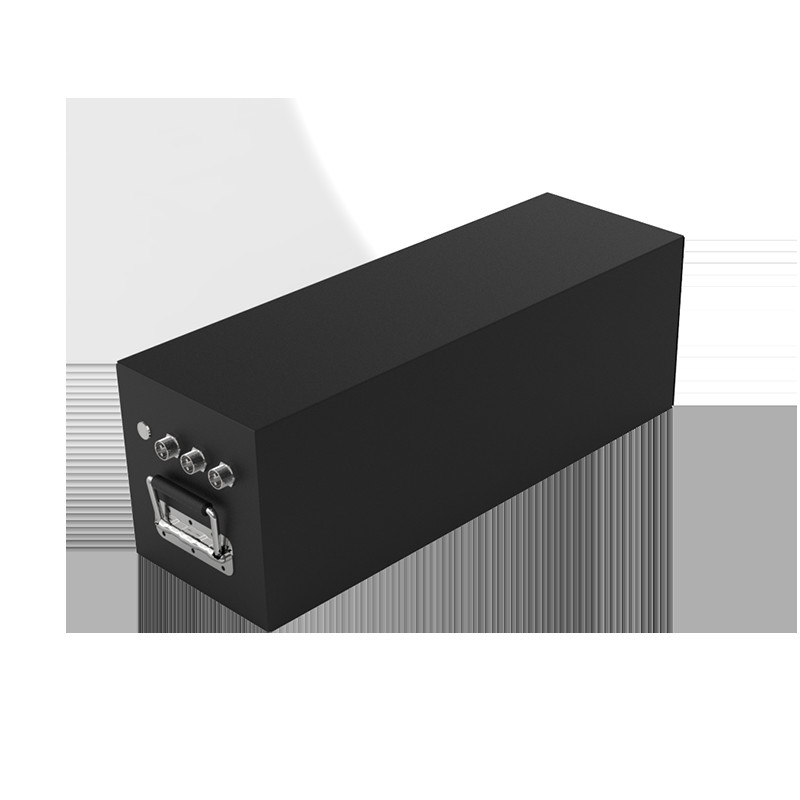

CLF 24V 25.6v 20ah OEM ODM Electric Tools LiFePO4 Lithium Iron Battery Packs
Product Parameter
Cell type: 26700/3.2V/4Ah
Battery specifications: 26700-8S5P/25.6V/20Ah
Nominal voltage: 25.6V
Nominal capacity: 20Ah
Charging voltage: 29.2V
Charging current: 5A
Discharge current: 10A
Instant discharge current: 50A 5s
Discharge cut-off voltage: 20V
Finished internal resistance: ≤200mΩ
Battery weight: 1.7kg
Product size: 280*130*80mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: -20 ~ 40℃
Temperature protection: 60℃±5℃
Battery case: stainless steel case
Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, power indicator, low power alarm, etc
Product Features
Production Details
From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
