CLF Lithium Iron Phosphate Rechargeable LiFePO4 Battery Pack 100Ah 200Ah 300Ah 400Ah 12V 24V For RV Camper Boat
Contact Person : CLF
Phone Number : +86 18975107916
WhatsApp : +8618975107916
| Minimum Order Quantity : | 10 units | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Wooden case and Carton case | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Hunan,China | Brand Name: | Chalong Fly |
|---|---|---|---|
| Certification: | ISO9001, UN38.3, CE, CB,MSDS | Model Number: | CLF-321 |
|
Detail Information |
|||
| Rated Capacity:: | 30Ah | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Energy: | 384Wh | Size: | 165*175*125*125mm |
| High Light: | LiFePO4 Solar Battery Storage System,LiFePO4 Solar Battery 12V 18Ah |
||

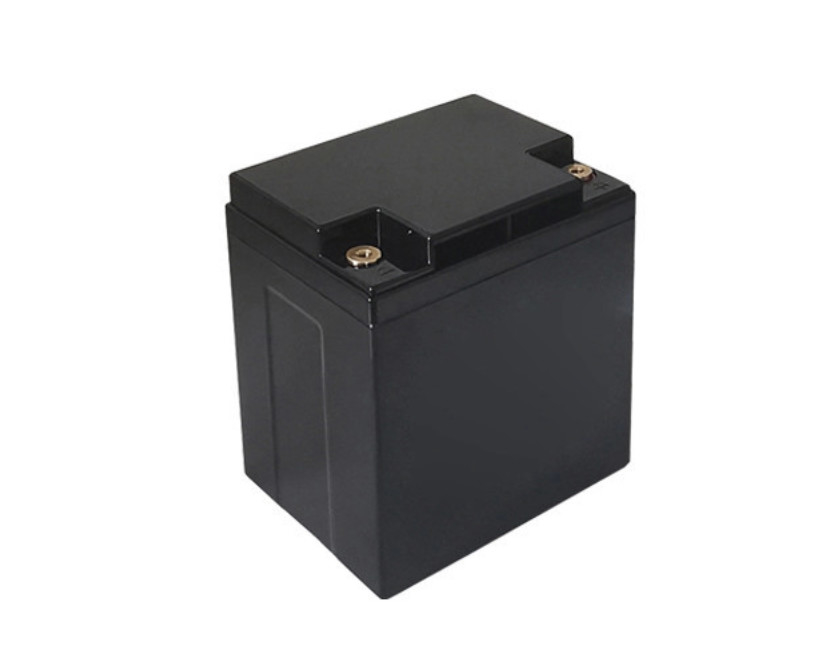

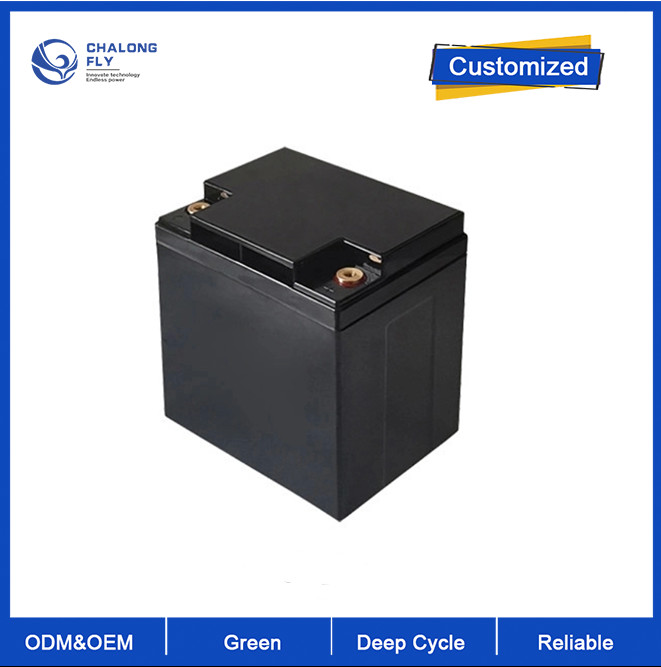

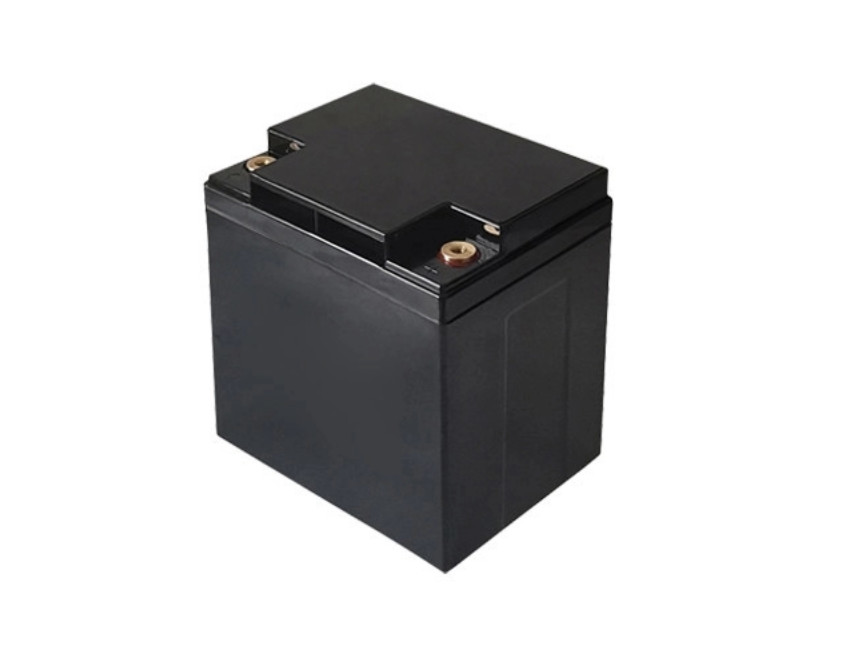

Product Description
OEM ODM LiFePO4 lithium battery 12V 18Ah 24Ah 30Ah 50Ah Lithium Solar Battery Storage System LiFePO4 384Wh Rechargeable
If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.
Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
Specifications:
| Nominal Voltage | 12.8V |
| Nominal Capacity | 30Ah |
| Energy | 384Wh |
| Internal Resistance | 70≤mΩ |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity |
| Months Self Discharge | ≤3.5% per month at 25℃ |
| Charge Voltage | 14.6±0.2V |
| Charge Mode(CC/CV) |
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. |
| Charger Current | 6A |
| Max.Charge Current | 15A |
| Discharge Current | 6A |
| Max. Continuous Current | 30A |
| Max.Pulse Current | 60A(<3S) |
| Disxcharge Cut-off Voltage | 10.0V |
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Water Dust Resistance | IP55 |
| Cell & Method | IFR32700 N60,4S5P |
| Plastic Case | ABS |
| Dimension(L*W*H*TH) | 165*175*125*125mm |
| Weight | 3.9kg |
| Terminal |
M5 |
Features:
1. Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
Design picture:
FAQ:
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.
Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.
O7: Is there any warranty or After-Sale Service?
A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.
Q8. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
