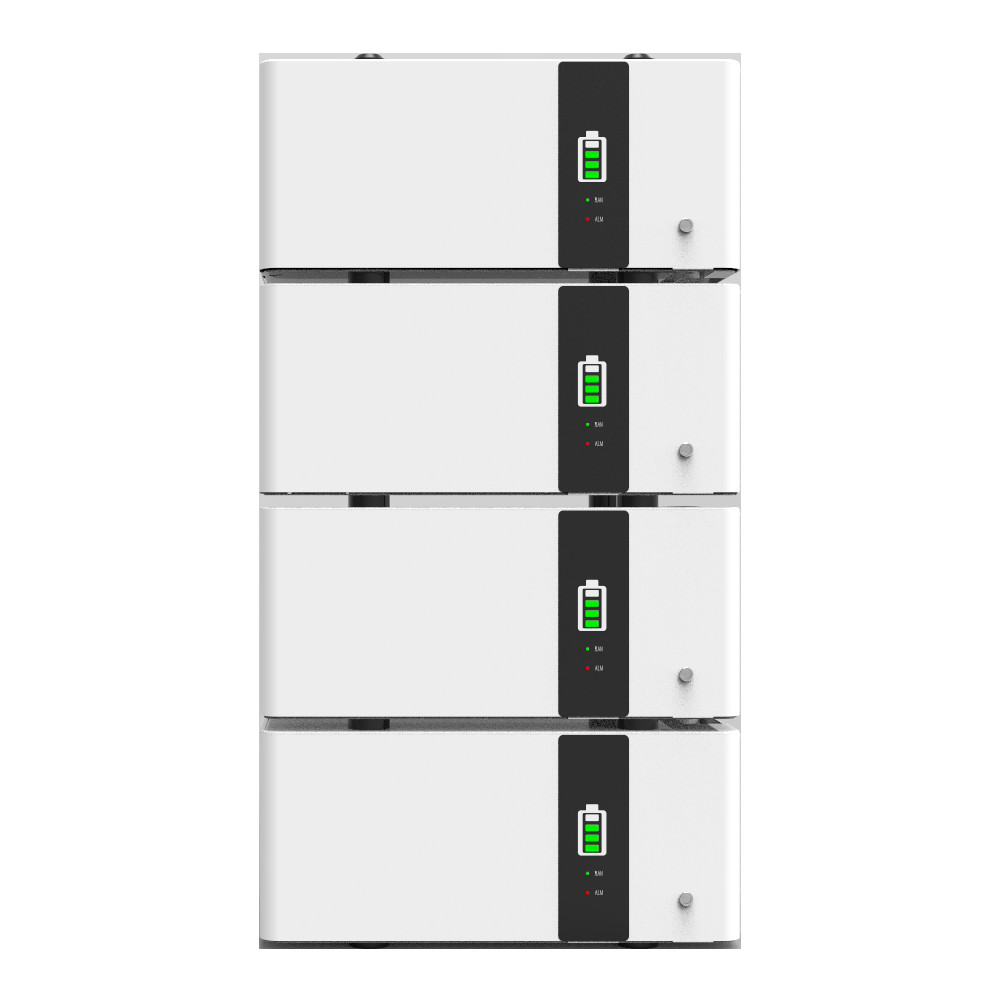

LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles

Minimum Order Quantity : 1 unit Price : Negotiable
Packaging Details : Wooden case and Carton case Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 1000 units per month
Place of Origin: Hunan,China Brand Name: CLF
Certification: CE Model Number: CLF-R0042

Detail Information

Nominal Capacity: 200Ah Nominal Voltage: 48V
Cell Type: Prismatic LiFePO4 LFP Dimensions(L×W×H): 480mmx280mmx210mm
Certificate: IEC62619 UN38.3 MSDS Application: Home, Solar System, Industrial, Villa, Telecom
Brand Name: OEM Color: White, Can Custom Logo
Weight: 28kG Per Pack, 120kG 4 Packs
High Light:

Powerwall Lithium Ion Battery Pack

,

200Ah Lithium Ion Battery Pack

,

10kwh Lithium Battery 48v

Product Description

LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 0

Powerwall Home Power Battery 10kwh Lithium Ion Battery 48v 200Ah For Solar Storage

Model
CLF-2800
CLF-10K
Capacity Energy
2.8kWh
11.2kWh
Capacity Ah
55Ah
220Ah
Suggested SOC
10~100%
Usable Capacity
2.6kWh
10.4kWh
Nominal Voltage
51.2V
Operation Voltage
44.8V – 57.6V
Maximum Charging/ Discharging Current
35A/50A
100A/100A per stack
Life Cycling (0.5C 25℃)
6000 cycles @ 0.5C
BMS
Parallel function, single cell voltage and temperature measurement, protections, display optional, heating function optional
Communication
CAN, RS485
Scalable
Yes, maximum 15 packs
Design Lifespan
more than 10 years
Operation Temperature
Chrage : 0 ~ 45℃, Dischrage : -20 ~ 45℃
Storage Temperature
-20 ~ 45℃
Weight
30kG
120kG
Dimensions
480x280x210mm
480x280x900 mm
Certifications
MSDS, UN38.3, RoHS, IEC62619, UL, CE
IP Grade
IP54
Warranty
10 years



LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 1LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 2LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 3



Product Quality
1, The cell is fixed with screws and fireproof tape to make the battery cell more stable

2, Two layers of fireproof sponges prevent collisions during transportation.

3, All wires are well protected to prevent any risk of short circut
LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 4LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 5

LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 6LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 7

LiFePO4 BATTERY CELL
LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 8LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 9LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 10



LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 11
Product Packaging
To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:

1) Inner box - Carton - Pallet- Container

2) Packaging also can be made by customers requirements

LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 12

LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 13





LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 14LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 15LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 16LiFePO4 Stackable 10kwh Lithium Ion Battery Pack 48v 200Ah 10KWH 15KWH 20KWH For Solar Energy Storage System 6000cycles 17

FAQs:


Q: Are you manufacturer?

A: We are manufacturer, and we sincerely welcome you to visit our factory!


Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed


Q: Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.

Thanks to send us your requirements to custom the batteries.


Q: What kind of certificates do you have?

A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
