LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging

China LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging supplier
LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging supplier LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging supplier LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging supplier LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging supplier

Large Image :  LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging

Product Details:

Place of Origin: Shenzhen, China
Brand Name: HKANON
Certification: CE, UL, RoHS, MSDS, UN38.3
Model Number: HN-LFP 48V 100AHA

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Packaging Details: 1PC/1 Wooden Box
Delivery Time: 10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5,000Pcs/Month
Contact Now
Detailed Product Description
Product Name: LiFePO4 Marine Battery 48V 100Ah 200Ah 300Ah 400Ah 5KWH 10KWH 15KWH 20KWH For 2.5KW 5KW 10KW Marine Cell Inside: 16S1P-3.2V 100Ah
Chemistry: Lithium Ion Application: Marine, Electric Boat, Sea Scooter, Electric Surfboard, Fishing Boat, ROV
Ingress Protection: IP65 BMS: Included



LiFePO4 Marine Battery 48V 100Ah 200Ah 300Ah 400Ah 5KWH 10KWH 15KWH 20KWH for 2.5KW 5KW 10KW Marine





SPECIFICATIONS



Items MODEL : HN-LFP 48V 100AHA
Cell Technology LiFePO4
Battery Module Capacity (KWh) 5KWH
Battery Module Voltage (Vdc) 51.2V
Battery Module Capacity (AH) 100Ah
Battery Module Cell Quantity in Series (pcs) 16 series with 1 parallel
Battery Module Charge Voltage (Vdc) 58.4
Battery System Charge Current (Standard) 20A
Battery Module Charge Current (Normal) 20A
Battery Module Charge Current (Max.) 30A
Battery Module Discharge lower-Voltage (Vdc) 43.2
Battery System Discharge Current (Standard) 0.2C @ 100Ah
Battery Module Discharge Current (Normal) 3C @ 100Ah
Battery Module Discharge Current (Max.) 5C @ 100Ah 3 seconds
Efficiency 98%
Depth of Discharge 100%
Dimension (L*W*H, mm) Customizable
Weight 55Kg
Communication Option of CANBUS OR RS485/RS232
Protection Class IP65
Operation Cycle Life Over 2500 times
Operation Life 5+ years
Operation Temperature ~10-50°C
Storage Temperature minus ~20 - 60 °C
Products certificates ISO9001, UL 1642, CE, RoHS
Transfer Certificates UN38.3 , MSDS

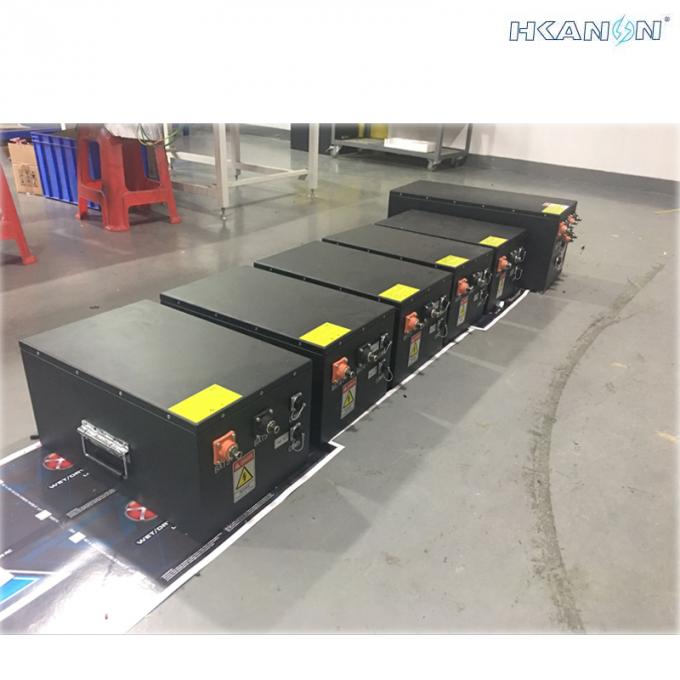

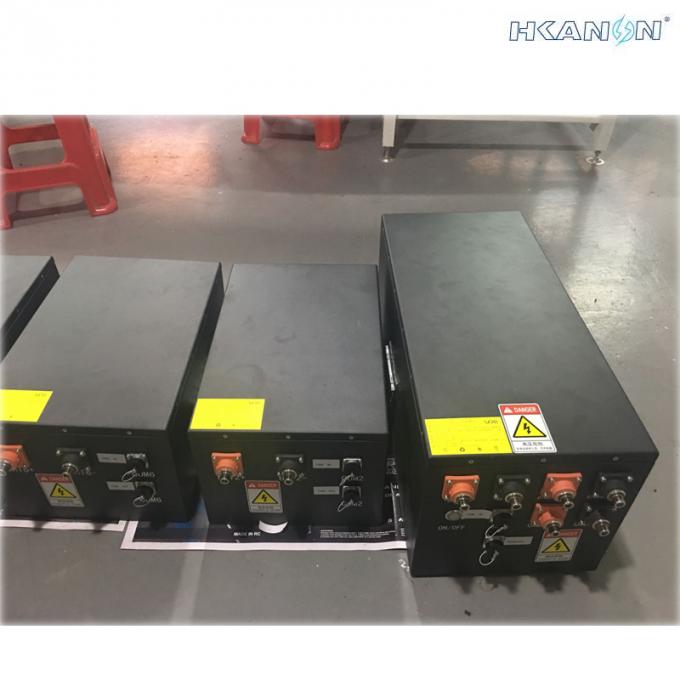

INTERIOR AND EXTERIOR GALLERY

LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging

LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging

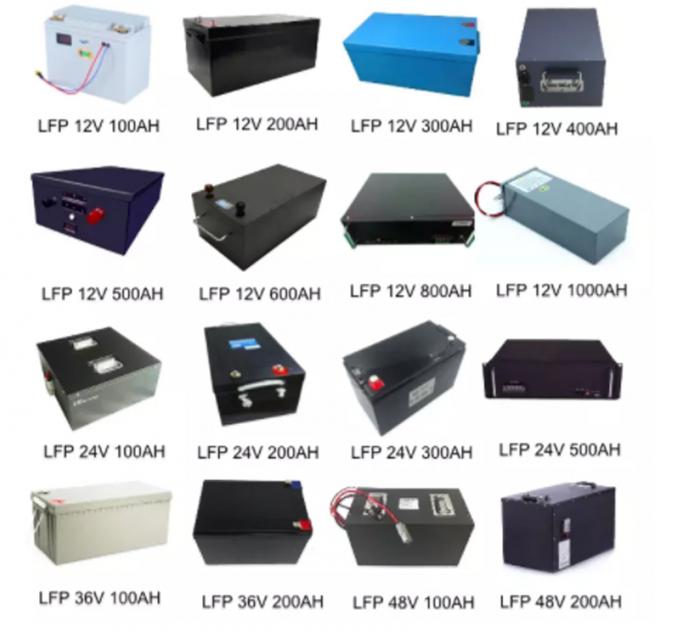

OTHER RELATED PRODUCT





LiFePO4 Deep Discharge Marine Battery Custom Dimension High Efficient Charging





OUR SERVICES

  • OEM and R&D services are available for both Products and Package.
  • Sample order and small order are both accepted.
  • Your inquiry will be responsed in 12 hours.
  • Once shipment arranged, we will track the shipping schedule every two days, until you received the products.



FAQ



1. Can this Lithium Ion Car Batteries be mounted in any position?

Sure. There is no limit on the installation positions of the vehicles for the Lithium Iron Phosphate Battery.

Thanks to its Excellent Stability at High Temperature and Non-Spillable design, this Lithium Iron Battery can be installed in the engine compartment, under the seat and in the trunk.

2. I heard these Rechargeable Lithium Ion Batteries were unsafe and a fire hazard. Will they blow up?
No, Lithium-ion Battery is absolutely safe.

The Lithium-ion batteries do not contain hyperactive metallic lithium, and the chemical properties of lithium-ion is much more stable than that of lithium-metal, especially the Lithium Iron Phosphate Battery, also as well known as LiFePO4 battery or LFP Battery for short.

Thanks to the thermal and chemical stability, our 12V 100Ah Deep Cycle Lithium Ion Battery comes with improved battery safety. The Puncture Test shows our LiFePO4 battery will not explode or flame, just reposefully smoke.

3. Can I use the lead acid battery charger for this Lithoum Ion battery?
No. Because the 3-stages charging process with float charging for lead acid battery is not properly for Lithoum Ion battery with a 2-stages charge profile.


The lead acid charger will NOT automatically cut off the Float charge even when the Li-ion battery is fully charged. And the float charging will constantly provides pulse current to the battery.

In the long run, this pulse current will damage the PCB/BMS of the li-ion battery. So the PCB/BMS won't be able to protect the li-ion battery when it should be.

4. What is the difference between Lead acid battery charger and Lithium ion battery charger?
The charger for lead acid battery provides CC/CV/FC 3-stages Charging, including constant current, constant voltage, and Float charge (Trickle charge).

The charger for Lithium ion battery only requires CC/CV 2-stages charging and the float charge is not necessary to the PCB of lithium ion battery.

5. How long can I store this lithium ion battery before charge it?
The attenuation rate (self-discharge rate) of lithium ion battery is as low as 1%~5% per year. You can store the battery for 5 years without extra charging.
