Payment & Shipping Terms:
|Case Color:||PVC+PET||Cycle Life:||≥3000 Times|
|Application:||Solar Battery,UPS,Inverter,EV Car,ESS,||Capacity:||Customized|
12V 2.6Ah 4.5Ah 10Ah 12Ah 15Ah 24Ah 30Ah 40Ah Rechargeable Solar Panel Battery
We offer flexible and modular solutions to meet all types of applications (voltage, capacity, sizing). The implementation of these batteries is simple and fast, with direct drop-in of legacy battery banks.
Solar and Wind Off Grid systems
PV Solar panel for solar off-grid and tied-grid systems
The batteries used to store solar and wind energy are currently mainly lead-acid batteries. Short lifespan and low cycle number of lead acid batteries make it a weak candidate for environment and cost efficiency.
Lithium-Ion batteries allow to equip solar or wind “off-grid” power stations, replacing the legacy banks of lead-acid batteries.
A lifetime (number of cycles) well above the lead-acid batteries (over 2000 cycles at 90% depth of discharge)
Footprint and weights 2-3 times lower than lead-acid
No maintenance required
Compatibility with installed equipment (charge controllers, AC converters, etc.) by using advanced BMS
Green solutions (non-toxic chemistries, recyclable batteries)

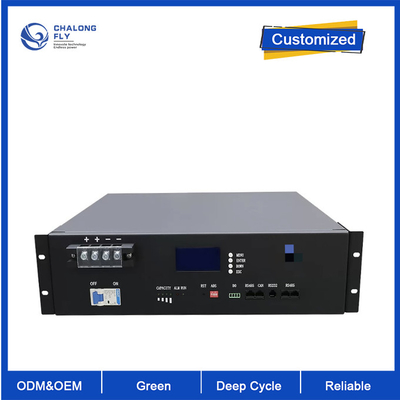

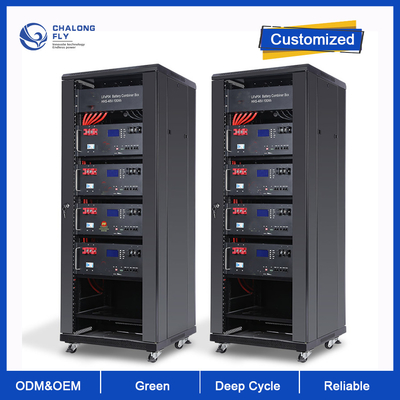

Such as Rack solar battery is a 100% modular, 19 or 21 or our standard inches Lithium-Ion battery system. Embedded system
We offers a range of 12V, 24V and 48V Lithium-Ion battery pack to meet most of our customer needs.

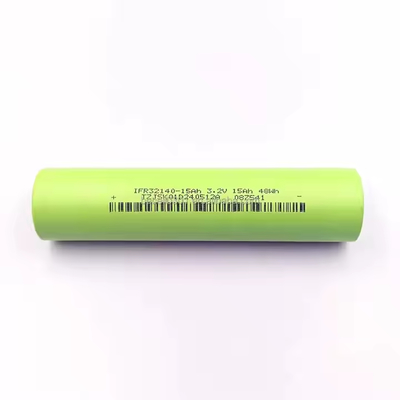

Our battery offer a high level of safety through the use of Lithium Iron Phosphate cylindrical cells and a built-in BMS.
Batteries can be discharged up to 100% and have a minimum operation life of 2000 charge/discharge cycles.
The rules for use and storage of batteries
Protect from improper handling.
Do not insert with opposite polarity, follow the signs. If the batteries are inserted in reverse, can cause a short-circuit or charging.
Prevent short-circuiting. If possitive (+) and negative (-) battery terminals are connected, short-circuiting happens.
Before installing, clean the terminals of battery and the terminals facilities.
The LiFePO4 should be always mounted with the terminals facing upwards.
Do not heat excessively. – batteries operate at temperatures according to the specifications.
Do not weld the cells.
Do not disassemble. When open may be contact with different parts of the battery harmful.
Do not distort. Batteries should not be compressed, punctured or damaged in any way.
Do not dispose of in fire.
Do not expose to water or excessive humidity.
Keep away from children. Beyond their reach, it is necessary first of all to keep away batteries which can be swallowed. In addition, children should not be allowed replacement of batteries without adult supervision.
Do not incase or modify. Any modifying of the battery may cause block safety ventilation mechanism. Any adjustments should consult the dealer.
Unused batteries should be stored charged and keep them away from metal subjects, which can make short-circuiting the battery. Alreary unpackage units should not be mixed and stored with unused batteries.
Avoid extreme humidity (over 95%) High temperature or humidity may worsening of battery characteristics and / or corrosion of the surface.
Do not storage / expose the battery to direct sunlight, in places where they may be exposed to rain, excessive heat such as radiators or heaters.
Batteries stored in well-ventilated and dry environment, ideally enclosed in a protective case.
During storage, keep the temperature within the range according to the specifications of a particular article.
Do not mix with other materials.
Do not stack cardboard box with batteries. When stacking may cause deformation of the battery in the lower layers and the subsequent flow of electrolyte.
For additional transportation / handling and packing materials, choose the method of packaging to prevent unintentional electrical contact and corrosion terminals, providing protection against environmental influences and mechanical damage.
Considerate handling of the boxes. Rough handling can cause a short circuit or damage.
Ensure proper circulation of stocks, follow FIFO system (First In, First Out).
Check the voltage of the cell every 2 month. Charge the cell if the voltage dropped to a minimum value of voltage
Battery operate under the supervision or constant monitoring protection and control systems. Protect against overcharge and deep-discharge.
WARNING: Carefully check the maximum voltage as specified cells or batteries. Exceeding the voltage will damage the battery and void the warranty.
New batteries LFP/LFYP are partly charged from factory. However, before first use it is absolutely necessary to charge the battery to full capacity. This initial charging should be done at maximum current of 1C and the voltage level according to the specification of the cell or battery. Please see specifications of the cell about value of initial charging. Battery capacity in the first cycle gradually grows. In the first few cycles is recommended to avoid rapid discharge to the minimum capacity and we do not recommend quick charging. After about the fifth, sixth cycle, is nothing to prevent the batteries used in full operating cycle according to the manufacturer's specifications for the type of battery.
Because LiFePO4 batteries has no memory effect, charging can be done at any time. Repeated short charge cycles the battery life not significantly changed (within + / - 5%).
|Nominal capacity(C/5, 23°C)||2.6Ah 4.5Ah 10Ah 12Ah 15Ah 24Ah 30Ah 40Ah|
|Storage||30wh - 480wh|
|Charge Temperature Range||0-45C|
|Discharge Temperature Range||-20-60C|
|Charging cycles||2000 cycles DOD>80%|
|Application||Solar ,UPS,LED Light ...|
